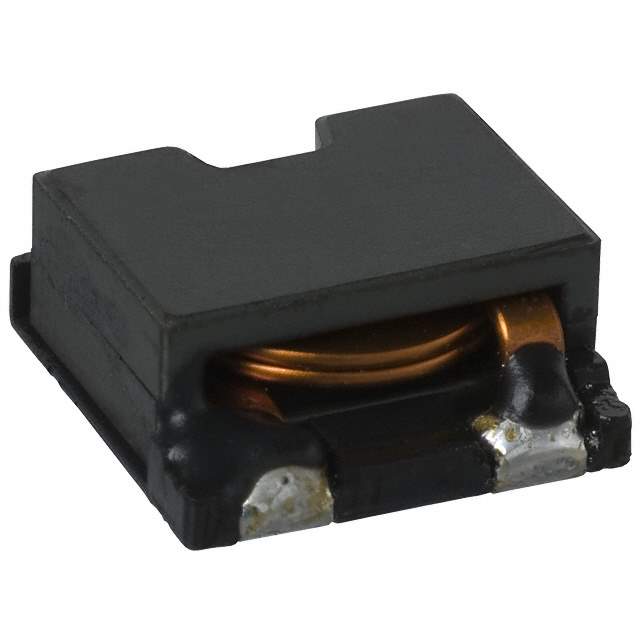

CEP125NP-4R3MC-U Real Image
Same model may have multiple batches, images only for reference.

CEP125NP-4R3MC-U

Part No CEP125NP-4R3MC-U
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description SMD Power Inductor
Datasheet
CEP125NP-4R3MC-U Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CEP125
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 4.3μH
Tolerance ±20%
Current Rating 8.2A
Current - Saturation 11A
Shielding Shielded
DC Resistance (DCR) 11.4 mOhm Max
Operating Temperature Range -40°C ~ 125°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Maximum) 0.220" (5.60mm)
Win Source Part Number 1161175-CEP125NP-4R3MC-U
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Limited
Family Name CEP125
Introduction Date July 30, 2002
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CEP125NP-4R3MC-U CAD Model

Description

Sumida America Components Inc. offers the CEP125NP-4R3MC-U electronic component.

  • Type: wirewound
  • Shielding: yes
  • Inductance: 4.3μH
  • Current Rating: 8.2A
  • Operating Temperature Range: -40°C to 125°C
  • Supply and Demand Status: limited
  • Manufacturer Homepage: www.sumida.com
