Same model may have multiple batches, images only for reference.

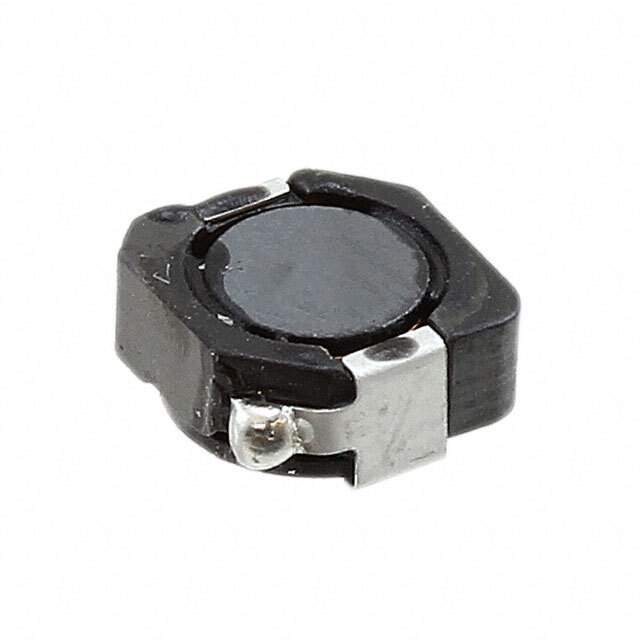

CDRH5D28RHPNP-4R7NC Real Image
Same model may have multiple batches, images only for reference.

CDRH5D28RHPNP-4R7NC

Part No CDRH5D28RHPNP-4R7NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description SMD Power Inductor
Datasheet
CDRH5D28RHPNP-4R7NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH5D28R/HP
Packaging Reel - TR
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±25%
Current Rating 2.8A
Current - Saturation 3.7A
Shielding Shielded
DC Resistance (DCR) 43.1 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.236" L x 0.232" W (6.00mm x 5.90mm)
Height - Seated (Maximum) 0.118" (3.00mm)
Win Source Part Number 1160875-CDRH5D28RHPNP-4R7NC
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Balance
Family Name CDRH
Introduction Date August 29, 2006
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CDRH5D28RHPNP-4R7NC CAD Model

Description

The Sumida America Components Inc. CDRH5D28R/HP series is a shielded surface mount inductor with a ferrite core material.

  • Inductance: 4.7μH
  • Current Rating: 2.8A
  • Tolerance: ±25%
  • Temperature Range: -40°C to 105°C
  • DC Resistance (DCR): 43.1 mOhm max
  • Size: 0.236" L x 0.232" W (6.00mm x 5.90mm)
  • Package: Nonstandard
  • Core Material: Ferrite
  • Mounting: Surface Mount
