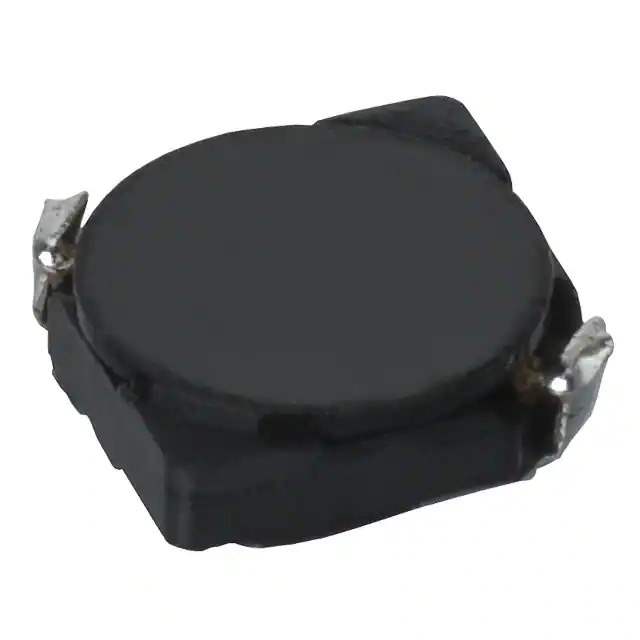

CDRH5D28NP-120NC

Part No CDRH5D28NP-120NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 12UH 1.2A 76 MOHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH5D28
Package Tape & Reel
Product Status Active
Material - Core Ferrite
Inductance 12 µH
Tolerance ±30%
Current Rating (Amps) 1.2 A
Shielding Shielded
DC Resistance (DCR) 76mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.224" L x 0.224" W (5.70mm x 5.70mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 578183-CDRH5D28NP-120NC
Ultra Librarian 3D Model Ultra Librarian CDRH5D28NP-120NC CAD Model

Description

The 578183-CDRH5D28NP-120NC is a fixed inductor designed for various applications from Sumida America Components Inc.

  • Size: 0.224" L x 0.224" W (5.70mm x 5.70mm)
  • Inductance: 12µH
  • Package: 2,000 pcs
