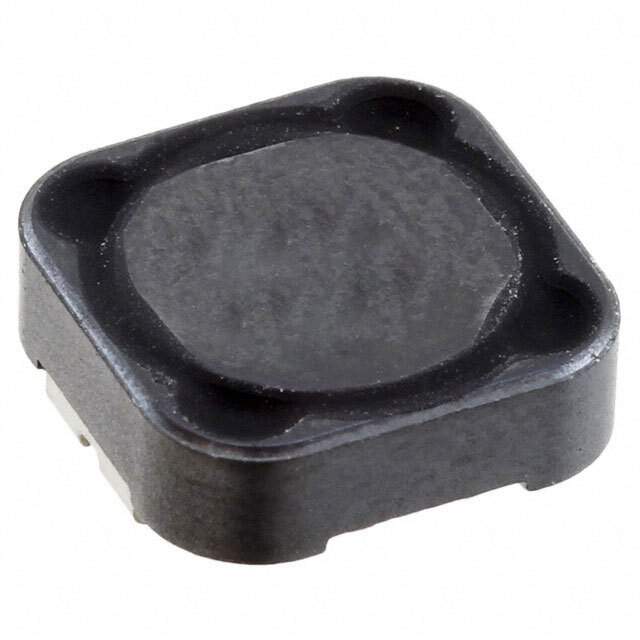

CDRH124NP-270MC Real Image
Same model may have multiple batches, images only for reference.

CDRH124NP-270MC

Part No CDRH124NP-270MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 27UH 2.8A 80 MOHM SMD / Inductor Power Shielded Drum Core 27uH 20% 100KHz Ferrite 2.8A 0.08Ohm DCR T/R
Datasheet
CDRH124NP-270MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH124
Packaging Reel package
Material - Core Ferrite
Inductance 27μH
Tolerance ±20%
Current Rating 2.8A
Shielding Shielded
DC Resistance (DCR) 80 mOhm Max
Operating Temperature Range -40°C ~ 100°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Maximum) 0.177" (4.50mm)
Win Source Part Number 771453-CDRH124NP-270MC
Popularity Medium
Supply and Demand Status Limited
Family Name CDRH124
Introduction Date July 29, 2002
ECCN EAR99
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian CDRH124NP-270MC CAD Model

Description

The Sumida America Components Inc. 771453-CDRH124NP-270MC is a shielded SMD inductor with an inductance of 27μH.

  • Current Rating: 2.8A
  • Operating Temperature Range: -40°C to 100°C
  • Tolerance: ±20%
  • DC Resistance (DCR): 80 mOhm Max
  • Dimensions: 0.472" L x 0.472" W (12.00mm x 12.00mm)
  • Height: 0.177" (4.50mm)
  • Series: CDRH124
  • Package: Reel
  • Alternative Parts: ELLATV270M, AE612PND273MSZ, AE612PND273MSH, AE612PND273MSN
