Same model may have multiple batches, images only for reference.

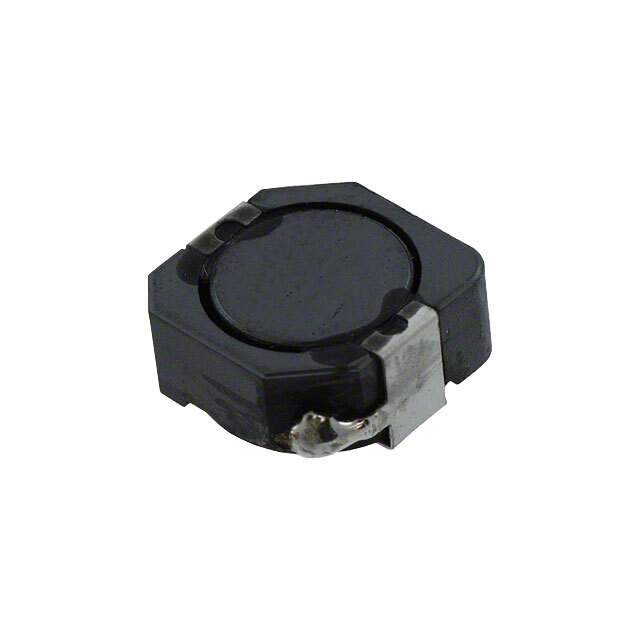

CDRH105RNP-470NC Real Image
Same model may have multiple batches, images only for reference.

CDRH105RNP-470NC

Part No CDRH105RNP-470NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description Ferrite drum core construction.
Datasheet
CDRH105RNP-470NC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Series CDRH105R
Packaging Reel - TR
Material - Core Ferrite
Inductance 47μH
Tolerance ±30%
Current Rating 2A
Current - Saturation 2A
Shielding Shielded
DC Resistance (DCR) 130 mOhm Max
Operating Temperature Range -40°C ~ 100°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Size 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Maximum) 0.205" (5.20mm)
Win Source Part Number 1160818-CDRH105RNP-470NC
Manufacturer Homepage www.sumida.com
Popularity Medium
Supply and Demand Status Limited
Family Name CDRH105R
Introduction Date December 14, 2004
ECCN EAR99
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian CDRH105RNP-470NC CAD Model

Description

The Sumida America Components Inc. The supply and demand status of this inductor is limited.

  • Manufacturer: Sumida America Components Inc.
  • Supply and Demand: Limited
  • Series: CDRH105R family
  • Package Type: Nonstandard package type
  • Current Rating: 2A
  • Inductance: 47μH
  • Shielded: Shielded
  • Mounting: SMD technology
  • Tolerance: ±30%
  • Operating Temperature: from -40°C to 100°C
  • Manufacturer Homepage: www.sumida.com
