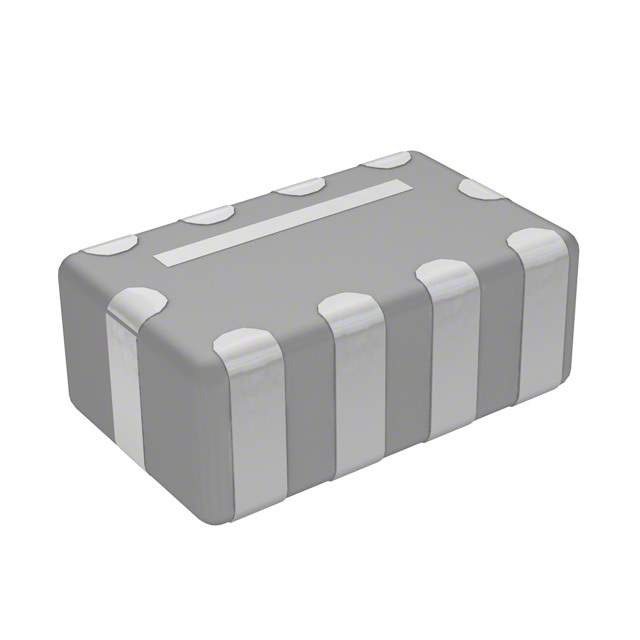

NFA21SL317V1A48 Real Image
Same model may have multiple batches, images only for reference.

NFA21SL317V1A48

Part No NFA21SL317V1A48
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 310MHZ SMD
Datasheet
NFA21SL317V1A48 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Type Low Pass
Filter Order 2nd
Technology LC
Number of Channels 4
Center / Cutoff Frequency 310MHz (Cutoff)
Attenuation Value 20dB @ 800MHz
Current 100mA
ESD Protection No
Temperature Range - Operating -55°C to 125°C
Applications Data Lines for Mobile Devices
Voltage Rating 10V
Mounting SMD (SMT)
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height 0.037" (0.95mm)
Win Source Part Number 209154-NFA21SL317V1A48
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NFA21SL317V1A48 CAD Model

Description

The Murata Electronics North America Low Pass Filter is a high-quality electronic component used for data lines in mobile devices.

  • Voltage Rating: 10V
  • Current: 100mA
  • Channels: 4
  • Attenuation: 20dB @ 800MHz
  • Filter Order: 2nd
  • Center/Cutoff Frequency: 310MHz (cutoff)
  • Resistance-Channel: Not specified
  • Mounting Technology: SMD (SMT)
  • Technology: LC
  • Height: 0.037" (0.95mm)
  • Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Type: Active
  • Temperature Range: -55°C to 125°C
  • Market Popularity: Medium
