Same model may have multiple batches, images only for reference.

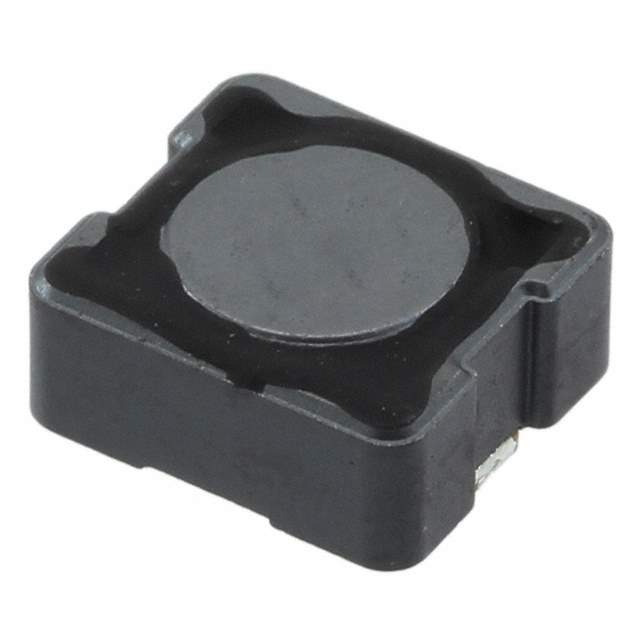

CDRH104R-680NC Real Image
Same model may have multiple batches, images only for reference.

CDRH104R-680NC

Part No CDRH104R-680NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 68UH 1.42A 213MOHM SMD / 68 µH Shielded Inductor 1.42 A 213mOhm Max Nonstandard
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Sumida America Components Inc.
Series CDRH104R
Package Tape & Reel (TR)
Product Status Obsolete
Inductance 68 µH
Tolerance ±30%
Current Rating (Amps) 1.42 A
Current - Saturation (Isat) 1.5A
Shielding Shielded
DC Resistance (DCR) 213mOhm Max
Temperature Range - Operating -40°C ~ 100°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.402" L x 0.394" W (10.20mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 308-1282-1,308-1282,308-1282-2
Standard Package 1,000
Win Source Part Number 1156965-CDRH104R-680NC
Ultra Librarian 3D Model Ultra Librarian CDRH104R-680NC CAD Model

Description

The Sumida America Components Inc. CDRH104R-680NC is a fixed inductor that has a shielded package type.

  • Inductance: 68 µH
  • Tolerance: ±30%
  • Height: Seated @ a maximum of 0.157" (4.00mm)
  • Standard Package: 1000
  • Package Type: Surface mount, non-standard package type
  • DC Resistance (DCR): 213mOhm max
  • Temperature Range: -40°C to 100°C
  • Current Rating: 1.42 A
  • EAR99 Compliant: EAR99
  • REACH: Unaffected by REACH
  • Obsolete Product: Obsolete
  • Manufacturer: Sumida America Components Inc.
