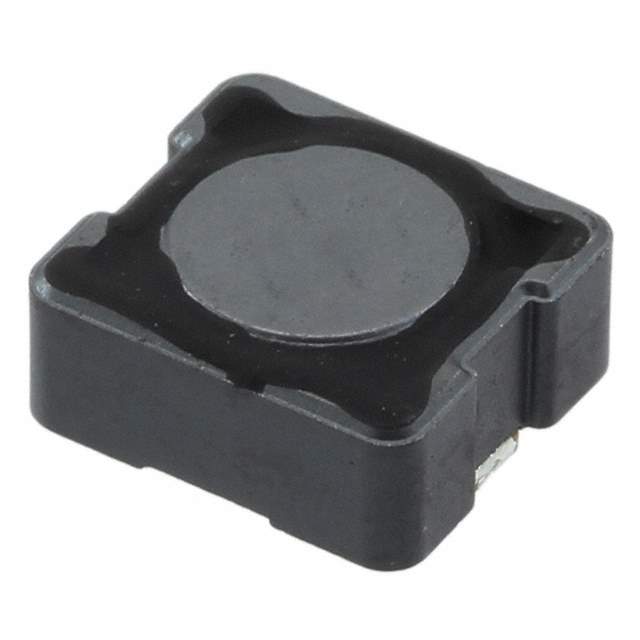

CDRH104R-220NC Real Image
Same model may have multiple batches, images only for reference.

CDRH104R-220NC

Part No CDRH104R-220NC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 2.5A 73 MOHM SMD
Datasheet
CDRH104R-220NC Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Inductance 22μH
Tolerance ±30%
Current Rating 2.5A
Current - Saturation 2.9A
DC Resistance (DCR) 73 mOhm Max
Temperature Range - Operating -40°C to 100°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 120498-CDRH104R-220NC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDRH104R-220NC CAD Model

Description

Product Overview: CDRH104R-220NC

The CDRH104R-220NC power inductor offers superior inductance and low DC resistance, critical for high-efficiency power supply circuits.

Features and Benefits:

  • High inductance value for superior energy storage.
  • Low profile design for space-critical applications.
  • EMI shielding for enhanced performance.
  • Excellent current handling to support various applications.

Applications and Projects:

  • Battery-powered devices
  • Automotive electronics
  • LED lighting solutions
  • Embedded systems

This component is crafted to support designs needing high inductance while ensuring minimal impact on power efficiency, lending itself especially well to complex electronic systems.
