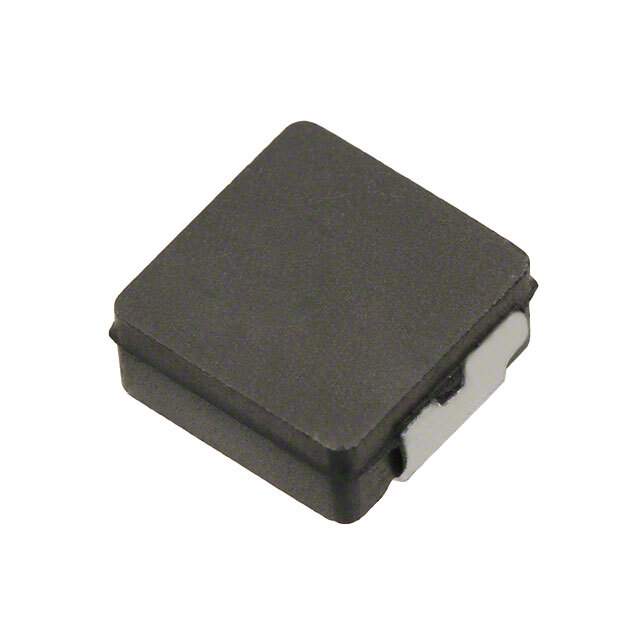

CDMC6D28NP-4R7MC Real Image
Same model may have multiple batches, images only for reference.

CDMC6D28NP-4R7MC

Part No CDMC6D28NP-4R7MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description SMD Power Inductor | FIXED IND 4.7UH 3.7A 46.4 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel
Material - Core Metal Composite
Inductance 4.7μH
Tolerance ±20%
Current Rating (Amps) 3.7A
Current - Saturation 4.3A
Shielding Shielded
DC Resistance (DCR) 46.4mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1MHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.285" L x 0.256" W (7.25mm x 6.50mm)
Height - Seated (Maximum) 0.118" (3.00mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759170-CDMC6D28NP-4R7MC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CDMC6D28NP-4R7MC CAD Model

Description

The CDMC6D28NP-4R7MC is an inductor manufactured by Sumida America Components Inc.

  • Inductance: 4.7μH
  • Tolerance: ±20%
  • Current Rating: 3.7A
  • Saturation Current: 4.3A
  • Applications: Inductors, coils, chokes
