Same model may have multiple batches, images only for reference.

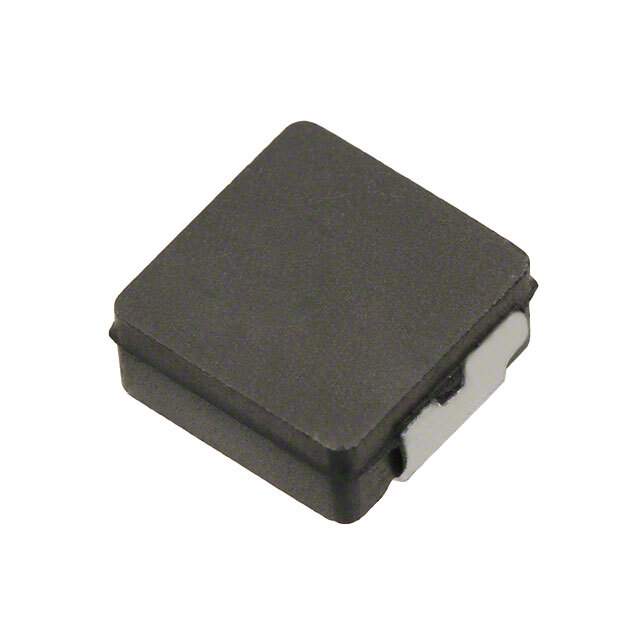

CDMC6D28NP-2R2MC Real Image
Same model may have multiple batches, images only for reference.

CDMC6D28NP-2R2MC

Part No CDMC6D28NP-2R2MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2UH 6A 19.3 MOHM SMD
Datasheet
CDMC6D28NP-2R2MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Status Active
Material - Core Metal Composite
Inductance 2.2μH
Tolerance ±20%
Current Rating 6A
Current - Saturation 6A
DC Resistance (DCR) 19.3 mOhm Max
Temperature Range - Operating -40°C to 125°C
Frequency - Test 1MHz
Mounting SMD (SMT)
Height - Seated (Max) 0.118" (3.00mm)
Win Source Part Number 050202-CDMC6D28NP-2R2MC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CDMC6D28NP-2R2MC CAD Model

Description

CDMC6D28NP-2R2MC High-Frequency Inductor

The CDMC6D28NP-2R2MC is engineered to provide superior performance in high-frequency applications. With its optimized design, it supports efficient energy conversion in compact electronic assemblies.

  • Applications: Switching power supply, Mobile devices, Audio equipment
  • Features: High reliability, Enhanced frequency performance, Low DCR
  • Benefits: Improved power efficiency, Space-saving design

    • Additional Details: Offers stable inductance over a wide temperature range.
