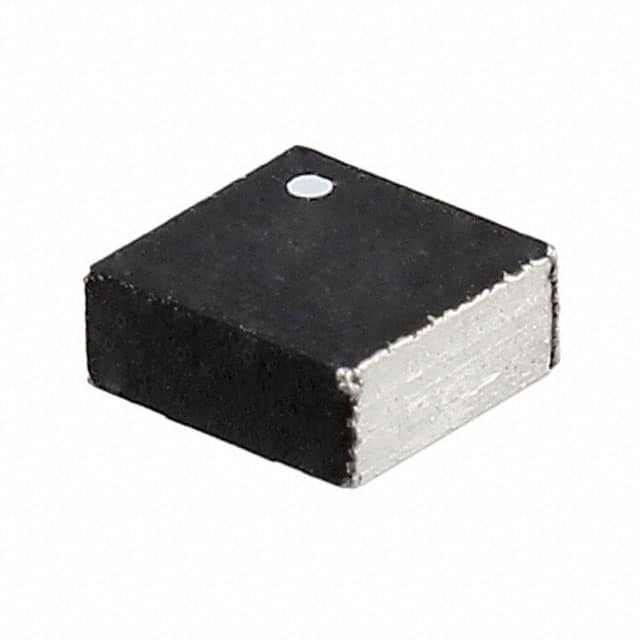

0420CDMCDS-220MC
Same model may have multiple batches, images only for reference.

0420CDMCDS-220MC

Part No 0420CDMCDS-220MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 1.5A 316 MOHM SMD
Datasheet
0420CDMCDS-220MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sumida America Components Inc.
Series 0420CDMC/DS
Package Tape & Reel
Product Status Obsolete
Type Wirewound
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 1.5 A
Current - Saturation (Isat) 1.6A
Shielding Shielded
DC Resistance (DCR) 316mOhm
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 1816 (4540 Metric)
Size / Dimension 0.177" L x 0.161" W (4.50mm x 4.10mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 853214-0420CDMCDS-220MC
Ultra Librarian 3D Model Ultra Librarian 0420CDMCDS-220MC CAD Model

Description

The 853214-0420CDMCDS-220MC is a wirewound fixed inductor from Sumida America Components Inc.

  • Series: 0420CDMC/DS
  • Size: 0.177" L x 0.161" W (4.50mm x 4.10mm)
  • Inductance: 22 µH
  • Tolerance: ±20%
  • Type: Shielded
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • DC Resistance: 316mOhm
  • Current Rating: 1.5A
  • Operating Temperature: -40°C to 105°C
  • Product Status: Obsolete
