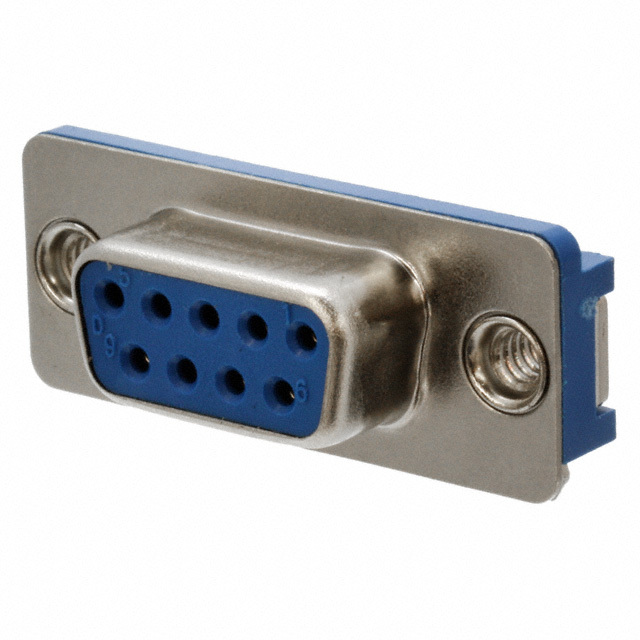

SDS223-PRW1-F09-SN13-2 Sullins Connector Solutions – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SDS223-PRW1-F09-SN13-2

Part No SDS223-PRW1-F09-SN13-2
Manufacturer Sullins Connector Solutions
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9POS R/A SOLDER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, InterconnectsD-Sub, D-Shaped ConnectorsD-Sub Connector Assemblies
Mfr Sullins Connector Solutions
Series 223
Packaging Tray
Part Status Obsolete
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Housing/Shell (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing 0.102" (2.60mm)
Features Board Lock
Voltage Rating 250V
Color Blue
Contact Form Stamped
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Material Brass
Operating Temperature -55°C ~ 105°C
Base Product Number SDS223
Ultra Librarian 3D Model Ultra Librarian SDS223-PRW1-F09-SN13-2 CAD Model
