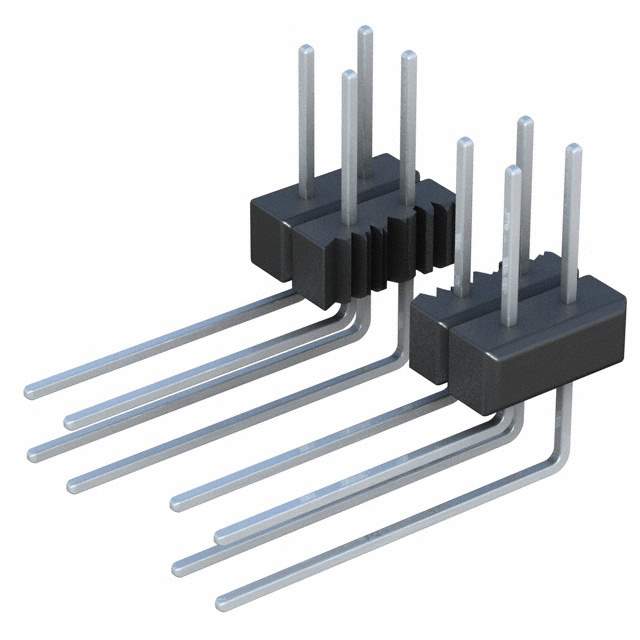

PTC12DBDN

Get a Quote

Part No	PTC12DBDN
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 24POS 2.54MM / Connector Header Through Hole, Right Angle 24 position 0.100" (2.54mm)
Datasheet	PTC12DBDN Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Sullins Connector Solutions
Package	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	24
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.420" (10.67mm)
Insulation Height	0.240" (6.10mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Thermoplastic, Polyester
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	100.0µin (2.54µm)
Base Product Number	PTC12
RoHS Status	RoHS non-compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	S2142-12
Standard Package	1
Win Source Part Number	1117519-PTC12DBDN
Ultra Librarian 3D Model	Ultra Librarian PTC12DBDN CAD Model

Description

The PTC12DBDN is a connector component manufactured by Sullins Connector Solutions. It is an obsolete product with a non-compliant RoHS status. The Win Source Part Number for this component is 1117519-PTC12DBDN. The PTC12DBDN is a versatile connector that can be used in various electronic applications. It is known for its reliability and durability. Despite being an obsolete product, it is still readily available in the market.
