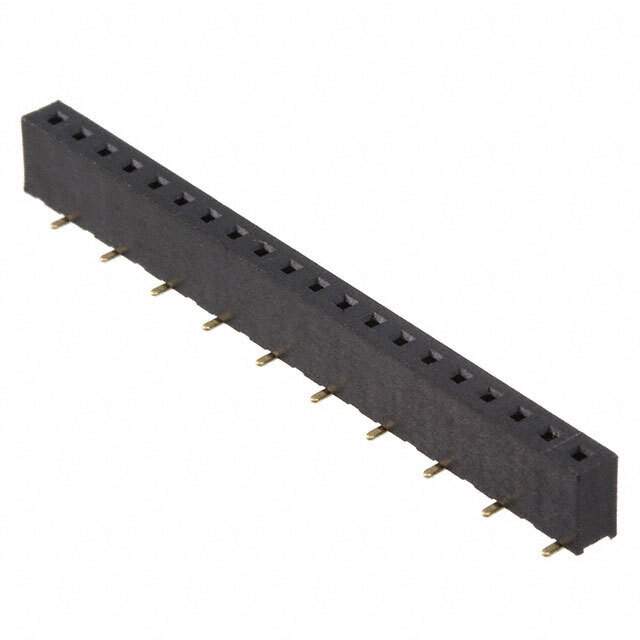

Same model may have multiple batches, images only for reference.

NPPN201BFLC-RC

Name: NPPN201BFLC-RC
Brand: Sullins Connector Solutions
SKU: 1383060
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NPPN201BFLC-RC
Manufacturer	Sullins Connector Solutions
Catalog	Rectangular Connectors
Description	CONN HDR 20POS 0.079 GOLD SMD / 20 Position Header Connector 0.079" (2.00mm) Surface Mount Gold
Datasheet	NPPN201BFLC-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Mfr	Sullins Connector Solutions
Series	-
Package	Tube
Connector Type	Header
Contact Type	Female Socket
Style	Board to Board
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	1
Row Spacing - Mating	-
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Insulation Color	Black
Insulation Height	0.181" (4.60mm)
Contact Length - Post	-
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Mated Stacking Heights	-
Ingress Protection	-
Features	-
Current Rating (Amps)	2A
Voltage Rating	150V
Applications	-
Insulation Material	Polyamide (PA6T), Nylon 6T
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	Flash
Base Product Number	NPPN201
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	15 pcs
Win Source Part Number	1383060-NPPN201BFLC-RC
Ultra Librarian 3D Model	Ultra Librarian NPPN201BFLC-RC CAD Model

Alternative Products

Description

The NPPN201BFLC-RC is a rectangular connector header manufactured by Sullins Connector Solutions.

Application: Board-to-Board
Fastening Type: Push-Pull
Positions: 20
Pitch: 0.079" (2.00mm)
Insulation Material: Polyamide (PA6T)
Flammability Rating: UL94 V-0
Voltage Rating: 150V
Temperature Range: -40°C to 105°C
Mounting Type: Surface Mount
Package: Tube
Applications: Telecommunications, Computer, and Consumer Electronics
