The VNQ05XSP16 from STMicroelectronics is a high-efficiency, automotive-grade power management integrated circuit designed to handle a wide range of applications within the automotive sector. This robust device is part of STMicroelectronics' VIPower M0-5 technology, which is renowned for its ability to drive a variety of inductive, resistive, or capacitive loads with outstanding efficiency and reliability.

Key Features

• High-Side Driver: The VNQ05XSP16 operates as a high-side driver, which allows it to switch power to loads by connecting them to the ground, rather than supplying power from a positive supply. This approach simplifies the driving of loads and offers protection against short circuits.
• Multi-Channel Operation: This device comes with multiple channels to control various loads independently, making it extremely versatile for complex automotive systems that require precise control over numerous functions.
• Current and Thermal Protection: It features built-in current sensing and thermal shutdown functions, ensuring the protection of the IC itself and the loads it controls. This is crucial in automotive environments where fluctuations can often occur.
• Low Standby Power Consumption: The VNQ05XSP16 is designed with an emphasis on low standby power consumption, which is essential for automotive applications where energy efficiency is a priority.

Applications

The VNQ05XSP16 is ideal for a wide range of automotive applications including, but not limited to:

• Lamp control
• DC motor control
• Automotive peripheral controls

Package and Quality

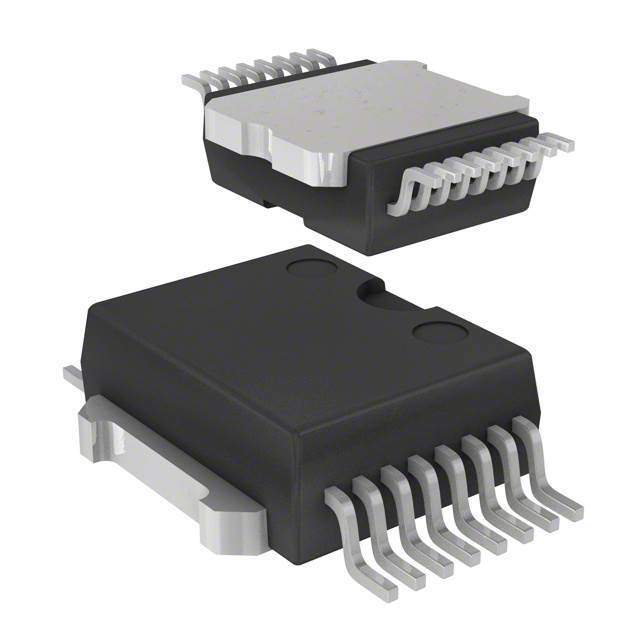

Encased in a PowerSSO-16 package, the VNQ05XSP16 is designed to meet the stringent quality standards required in the automotive industry. Its compact form factor and solid construction make it suitable for space-constrained applications while providing reliable performance in harsh automotive environments.

With the VNQ05XSP16, STMicroelectronics continues to demonstrate its commitment to delivering high-quality, innovative solutions for the automotive industry, ensuring that manufacturers can design vehicles that are both powerful and energy-efficient.
