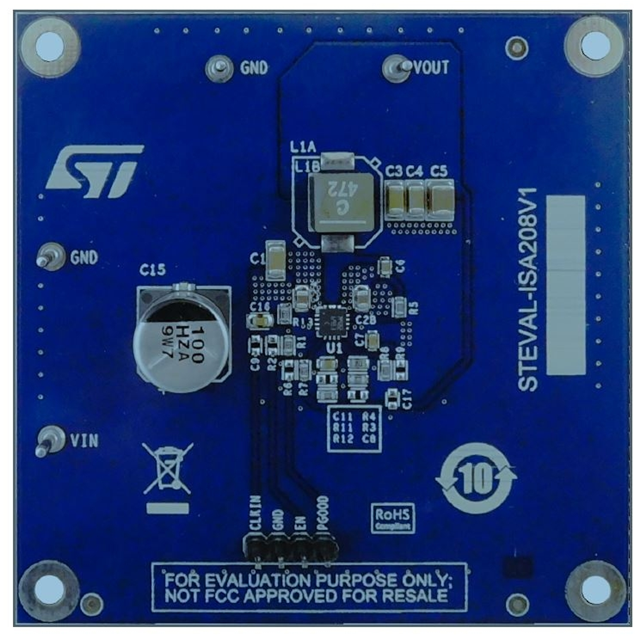

Introducing the STEVAL-ISA208V1 from STMicroelectronics

The STEVAL-ISA208V1 is a state-of-the-art product evaluation board from STMicroelectronics, designed for those seeking to explore the capabilities of the advanced L7987L regulator. This evaluation board is an excellent tool for engineers and developers who want to test the performance and efficiency of this high-power, high-efficiency, step-down switching regulator in their applications.

Key Features

• High Efficiency: The L7987L regulator on the STEVAL-ISA208V1 can achieve up to 95% efficiency, which is crucial for minimizing power loss and heat generation in demanding applications.
• Wide Input Voltage Range: With an input voltage range from 4.5V to 61V, the board is versatile and can be used for a variety of applications, including those with fluctuating power supplies.
• Adjustable Output Voltage: Users can set the output voltage from 0.8V to VIN, thanks to the adjustable feedback loop, making the board suitable for powering a wide range of devices.
• High Output Current: The regulator can deliver up to 3A of continuous output current, which is perfect for applications that require a significant amount of power.
• Thermal Protection: The board includes thermal shutdown and overcurrent protection features, ensuring the safety and longevity of both the board and the end application.

Applications

The STEVAL-ISA208V1 is ideal for a variety of applications, including industrial control systems, consumer electronics, telecommunications infrastructure, and more. Its robust design and versatile features make it suitable for experimenting with different power configurations and requirements.

Design and Usability

Designed with the user in mind, the STEVAL-ISA208V1 evaluation board is equipped with test points and jumpers for easy measurement and configuration. The compact size of the board makes it easy to integrate into existing systems for testing or to use as a reference design for new projects.

STMicroelectronics has ensured that the STEVAL-ISA208V1 is not only a powerful tool for product evaluation but also a resource for learning and development. By using this board, designers can gain a deeper understanding of power supply design and the features of the L7987L regulator, accelerating the development cycle and helping to bring products to market more quickly.

Whether you are a professional engineer, a student, or an electronics enthusiast, the STEVAL-ISA208V1 evaluation board offers a comprehensive platform for exploring advanced power supply solutions.
