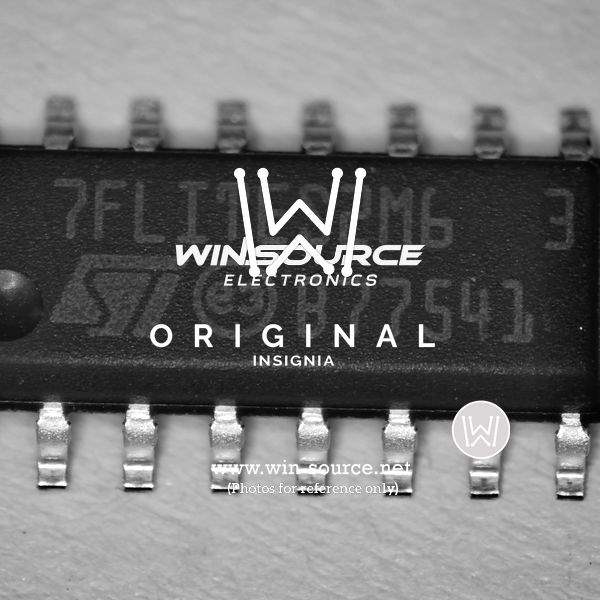

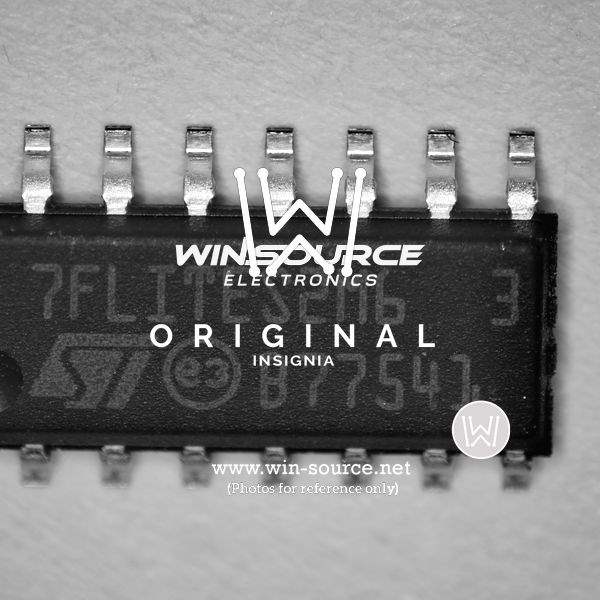

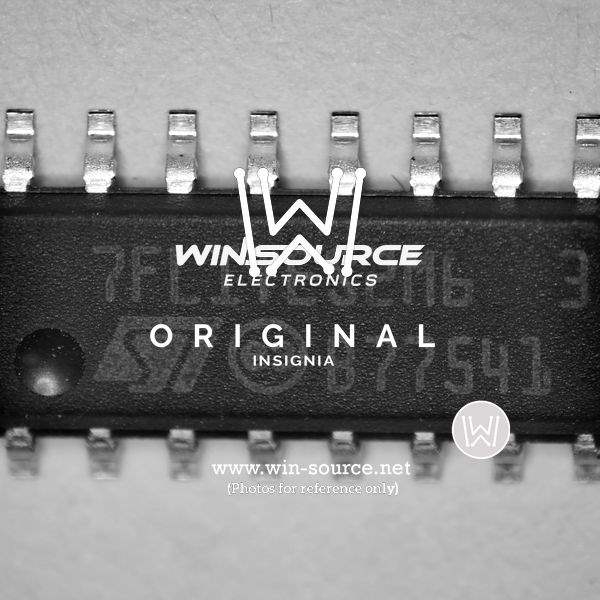

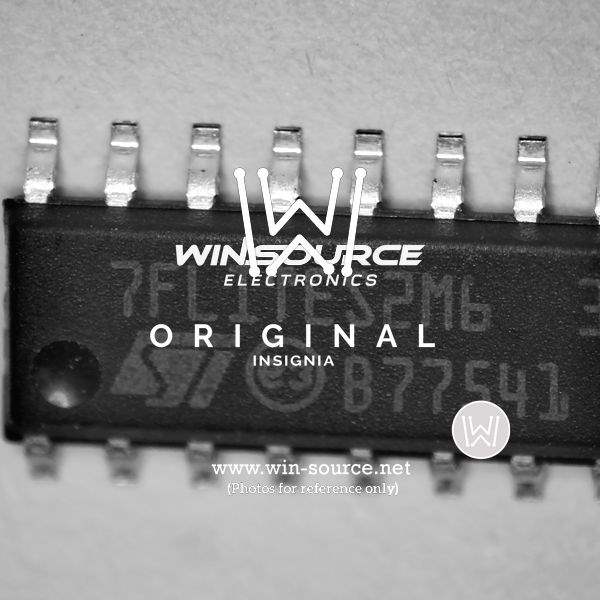

ST7FLITES2M6 Microcontroller by STMicroelectronics

The ST7FLITES2M6 is a versatile and powerful microcontroller produced by STMicroelectronics, designed to offer a robust solution for a wide range of embedded applications. This microcontroller is part of the ST7 family, which is known for its high performance and low power consumption, making it an ideal choice for cost-sensitive and power-conscious designs.

At the heart of the ST7FLITES2M6 is an 8-bit CPU with a maximum operating frequency of 8 MHz, which provides a good balance between processing power and energy efficiency. The device comes with 4KB of Flash program memory that is both In-Circuit Programmable (ICP) and In-Application Programmable (IAP), giving developers flexibility in updating firmware on the fly.

With 128 bytes of true data EEPROM, this microcontroller offers high endurance, with a guaranteed minimum of 300,000 write/erase cycles and 40 years of data retention, ensuring the reliability of applications over an extended period. The ST7FLITES2M6 also features 128 bytes of RAM, which is sufficient for handling small to moderate data processing tasks.

On the peripherals side, the ST7FLITES2M6 is equipped with a range of features that support its versatility. It includes a 10-bit Analog-to-Digital Converter (ADC) with up to 5 multiplexed channels, allowing it to interface with analog sensors and convert their signals for digital processing. Additionally, the microcontroller offers enhanced I/O capabilities with 15 I/O pins, including high sink outputs and interrupt capability on all I/O pins.

The device also incorporates a flexible 8-bit auto-reload timer, a watchdog timer, and a single wire interface module, further enhancing its functionality for various applications. The ST7FLITES2M6 supports a wide operating voltage range from 3.0V to 5.5V, which is suitable for battery-operated devices as well as those connected to power grids.

For developers, STMicroelectronics provides comprehensive development tools, including software libraries, development kits, and a dedicated ST7 visual develop (STVD7) integrated development environment (IDE), which simplifies the programming and debugging process.

Overall, the ST7FLITES2M6 microcontroller is a compact, feature-rich solution that delivers reliable performance for applications such as automotive, industrial control, home appliances, and personal electronics.
