Products specifications

Categories Circuit Protection
Manufacturer STMicroelectronics
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 3V
Minimum Breakdown Voltage 6.1V
Power Dissipation - Pd 30W
Applications General Purpose
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)

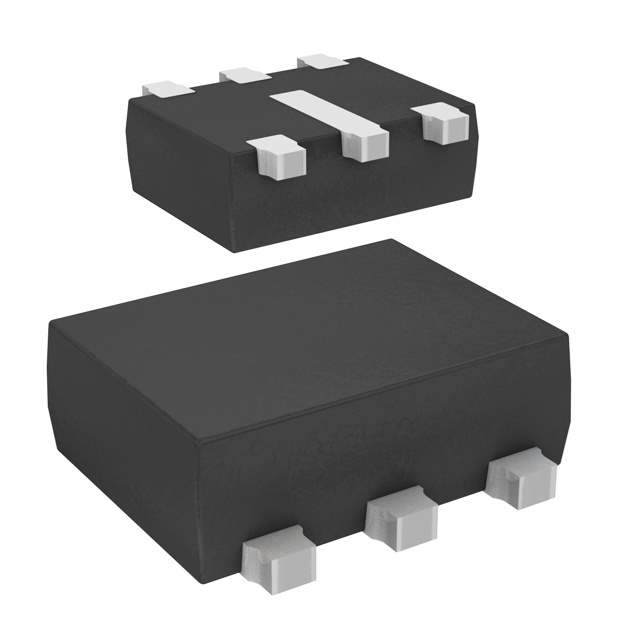

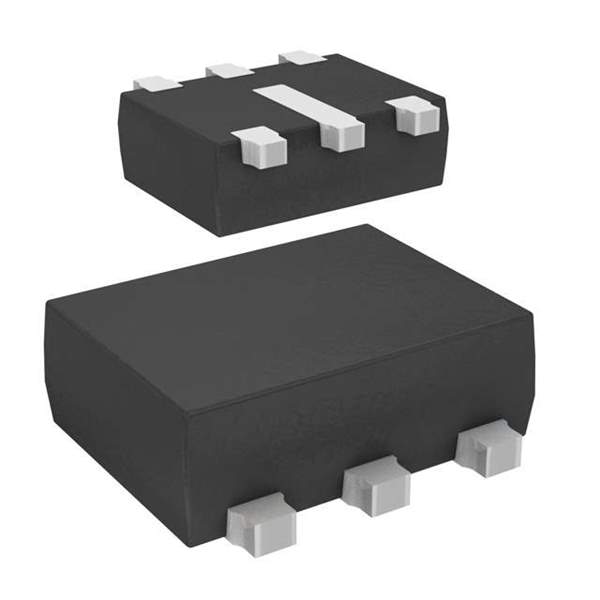

Case / Package SOT-666IP
Win Source Part Number 015730-ESDALC6V1P6
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ESDALC6V1P6 CAD Model

Description

The ESDALC6V1P6 is a state-of-the-art ESD protection device manufactured by STMicroelectronics, designed to safeguard high-speed data lines and other sensitive circuits from electrostatic discharge (ESD) threats. This compact, bidirectional single line TVS (Transient Voltage Suppressor) diode is specifically engineered to protect sensitive electronic components in applications where minimal board space is a premium.

Key Features

  • Low Clamping Voltage: The device offers a very low clamping voltage, ensuring that the protected ICs are not exposed to high voltage during ESD events.
  • High ESD Protection Level: It can withstand ESD discharges up to 15 kV (air discharge) and 8 kV (contact discharge) as per the IEC 61000-4-2 standard, providing robust protection for your electronics.
  • Ultra-Compact Design: With its SOT-666 package, it is one of the smallest packages available, making it ideal for portable electronics where space is limited.
  • Low Leakage Current: The device features a very low leakage current, which is beneficial for battery-powered devices, as it helps to conserve power and extend battery life.
  • Fast Response Time: Its fast response time ensures quick protection for sensitive circuits from the immediate threat of ESD.

Applications

The ESDALC6V1P6 is suitable for a wide range of applications, including but not limited to:

  • USB 2.0, 3.0, and 3.1 interfaces
  • HDMI, DisplayPort, and Thunderbolt interfaces
  • Antenna and RF lines
  • High-speed data lines in mobile devices
  • Computers and computer peripherals

Reliability and Quality

STMicroelectronics is renowned for its commitment to quality and reliability, and the ESDALC6V1P6 is no exception. It is manufactured using robust semiconductor processes, which ensures high durability and stable performance under various environmental conditions. The device also complies with relevant international standards, providing designers and engineers with confidence in its protective capabilities.
