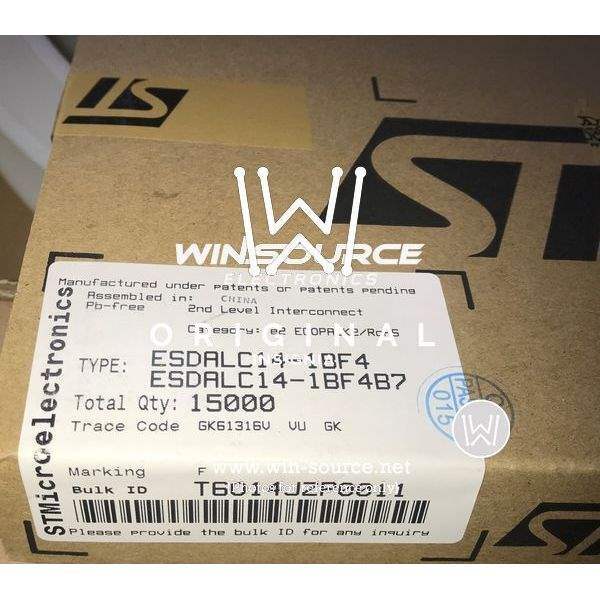

ESDALC14-1BF4 Transient Voltage Suppressor by STMicroelectronics

The ESDALC14-1BF4 is a state-of-the-art transient voltage suppressor designed by STMicroelectronics, specifically engineered to protect sensitive electronic equipment from electrostatic discharges (ESD) and other voltage-induced transient events. This robust component is an ideal solution for safeguarding high-speed data lines and other vulnerable circuits found in a wide array of electronic applications.

Key Features

• Low Clamping Voltage: The device offers excellent protection for sensitive circuits by clamping voltage to a minimum during transient events, ensuring that connected components are shielded from potentially damaging high-voltage spikes.
• High Surge Capability: With its impressive surge capability, the ESDALC14-1BF4 is capable of withstanding substantial transient currents, providing reliable protection against abrupt power surges.
• Low Capacitance: The component is designed with low line capacitance, making it suitable for protecting high-speed data lines without significantly affecting signal integrity.
• Single-line Protection: This unidirectional device is capable of protecting one data or power line, offering a focused approach to transient voltage suppression.

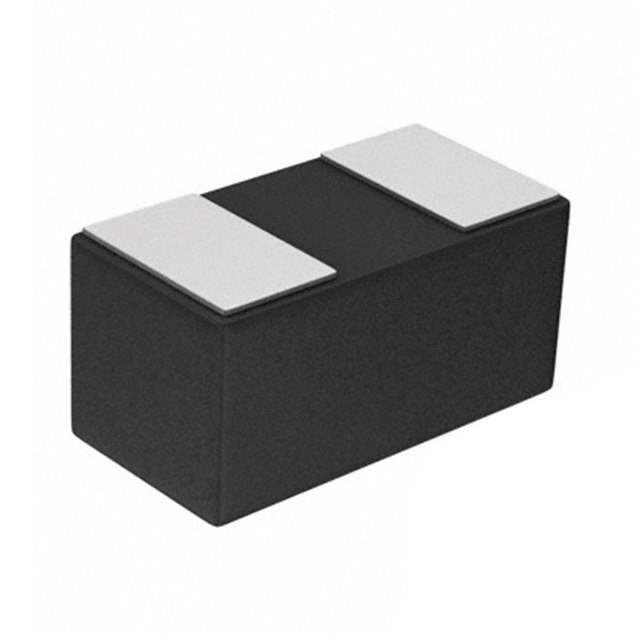

• Small Package Size: Housed in a small SOD-882 package, the ESDALC14-1BF4 is perfect for space-constrained applications, allowing for high-density board layouts.

Applications

The versatility of the ESDALC14-1BF4 makes it suitable for a diverse range of applications, including:

• USB 2.0 and 3.0 power and data line protection
• HDMI and DisplayPort interfaces
• Antenna protection for wireless devices
• Mobile phones, tablets, and portable electronics
• High-speed signal lines requiring ESD protection

Reliability and Compliance

The ESDALC14-1BF4 is manufactured to meet the highest quality and reliability standards. It complies with the IEC 61000-4-2 standard for ESD protection, ensuring that devices incorporating this component are safeguarded against common electrostatic threats encountered in everyday environments.

By choosing the ESDALC14-1BF4 from STMicroelectronics, designers and engineers can enhance the durability and reliability of their electronic products, protecting them from the damaging effects of transient voltage events.
