The BAT41JFILM is a small signal Schottky diode, highly appreciated for its low forward voltage drop and fast switching capabilities. Manufactured by STMicroelectronics, a leader in the semiconductor industry, this diode is designed for high-efficiency applications where power conservation is critical. It's commonly used in DC power supplies, as a rectification diode, or in high-frequency inverters and as a protection device in various electronic circuits.
Key Features
- Low Forward Voltage Drop: The BAT41JFILM offers a very low forward voltage drop, which results in reduced power loss and improved efficiency in your electronic designs.
- Fast Switching Speed: With its Schottky barrier construction, the diode provides fast switching action, making it suitable for high-frequency applications.
- High Reliability: STMicroelectronics' commitment to quality ensures that this component is reliable for long-term use, even under demanding conditions.

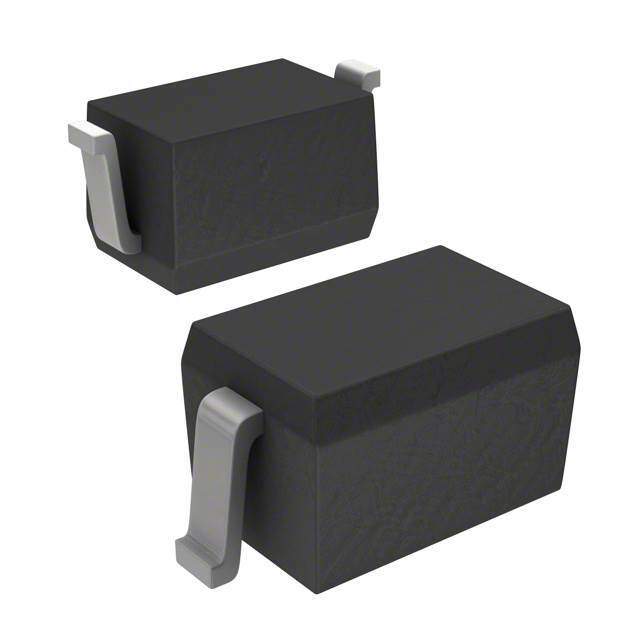

- Surface-Mount Package: The BAT41JFILM comes in a DO-213AB surface-mount package, which is ideal for automated assembly processes and helps save space on printed circuit boards.
Applications
The BAT41JFILM is versatile and can be used in a wide variety of applications, including:
- Switching power supply systems
- DC-DC converters
- Reverse battery protection circuits
- Charge and discharge circuits for batteries
- High-frequency rectification in telecommunications equipment
Specifications
Parameter
Value
Repetitive Peak Reverse Voltage (V<sub>RRM)
100V
Average Forward Current (I<sub>F(AV))
200mA
Forward Voltage Drop (V<sub>F)
1.0V at 100mA
Operating Junction Temperature (T<sub>j)
-40°C to +125°C
With its superior electrical characteristics and flexible application scope, the BAT41JFILM from STMicroelectronics is an excellent choice for designers looking to enhance the performance and efficiency of their electronic products.
