Same model may have multiple batches, images only for reference.

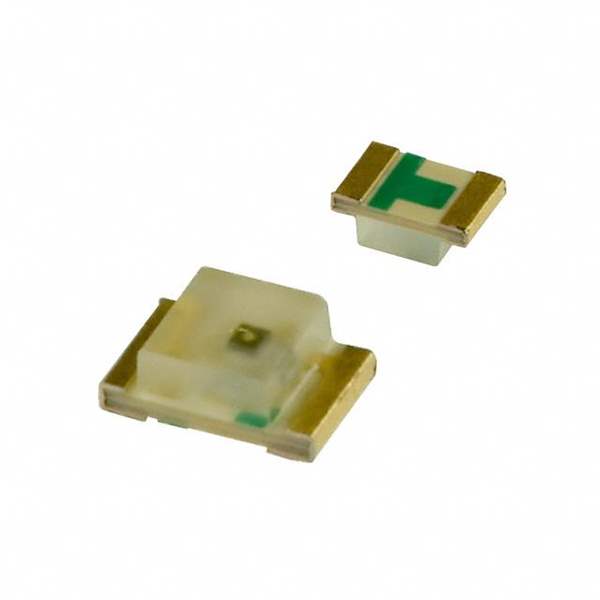

PY1112H-TR Stanley Electric Co
Same model may have multiple batches, images only for reference.

PY1112H-TR

Part No PY1112H-TR
Manufacturer Stanley Electric Co
Catalog LED Indication - Discrete
Description LED GREEN DIFFUSED 0805 SMD
Datasheet
PY1112H-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Stanley Electric Co
Packaging Reel - TR
Status Active
Color Green
Lens Color White
Lens Transparency Diffused
Millicandela Rating 11.7mcd
Lens Style/Size Rectangle with Flat Top, 1.20mm x 1.25mm
Forward Voltage 2.1V
Current - Test 20mA
Viewing Angle 151°, 156°
Mounting SMD (SMT)
Wavelength - Dominant 572nm
Wavelength - Peak 570nm
Case / Package 2125
Height (Max) 0.90mm
Win Source Part Number 027013-PY1112H-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PY1112H-TR CAD Model

Description

The 292153 is a rectangular LED from Stanley Electric Co with a part number of 027013-PY1112H-TR.

  • Lens Transparency: Diffused
  • Lens Color: White
  • Forward Voltage: 2.1 volts
  • Viewing Angle: 151° and 156°
  • Millicandela Rating: 11.7mcd
  • Current-Test: 20mA
  • Wavelength-Dominant: 572nm
  • Wavelength-Peak: 570nm
  • Suitable for: Optoelectronics applications
  • Package: 2125
  • Popularity: Medium
  • Supply and Demand Status: Balanced
