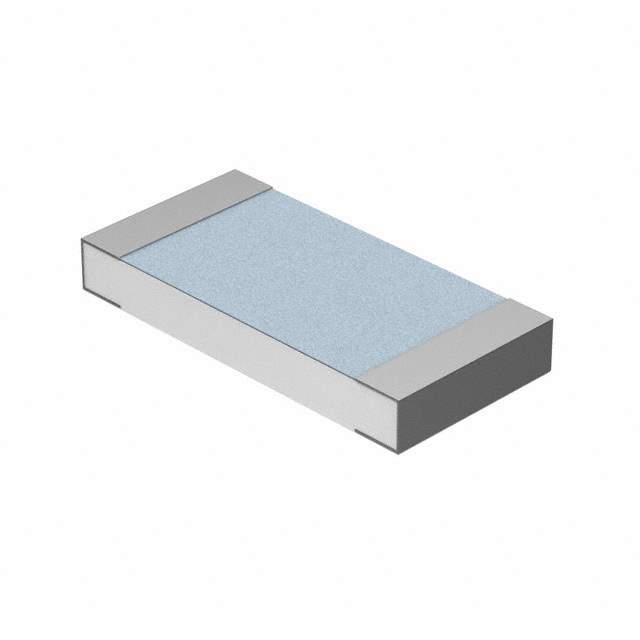

Same model may have multiple batches, images only for reference.

CSNL2010FT5L00

Name: CSNL2010FT5L00
Brand: Stackpole Electronics Inc.
SKU: 1326373
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	CSNL2010FT5L00
Manufacturer	Stackpole Electronics Inc.
Catalog	Chip Resistor - Surface Mount
Description	RES 0.005 OHM 1% 1.5W 2010 / 5 mOhms ±1% 1.5W Chip Resistor 2010 (5025 Metric) Current Sense, Moisture Resistant Metal Element
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Manufacturer	Stackpole Electronics Inc
Packaging	Reel - TR
Resistance	5 mOhms
Tolerance	±1%
Power (Watts)	1.5W
Composition	Metal Element
Features	Current Sense, Moisture Resistant
Temperature Coefficient	±50ppm/°C
Temperature Range - Operating	-55°C ~ 170°C
Case / Package	2010 (5025 Metric)
Supplier Device Package	2010
Size / Dimension	0.200" L x 0.100" W (5.08mm x 2.54mm)
Height - Seated (Max)	0.035" (0.90mm)
Number of Terminations	2
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0030
Other Part Number	CSNL10.005FRDKR,CSNL1.0051%RDKR-ND,CSNL10.0051%RDKR,CSNL10.005FRDKR-ND,CSNL1.0051%RTR-ND,CSNL10.0051%RTR,CSNL10.005FRTR-ND,CSNL2010FT5L00DKR,CSNL10.005FRCT-ND,CSNL1.0051%RDKR,CSNL1.0051%RTR,CSNL10.0051%RDKR-ND,CSNL10.0051%RTR-ND,CSNL 1 .005 1% R,CSNL10.005FRCT,CSNL2010FT5L00CT,CSNL10.0051%RCT,CSNL10.0051%RCT-ND,CSNL1.0051%RCT-ND,CSNL1.0051%RCT,CSNL10.005FRTR,CSNL2010FT5L00TR
Standard Package	2,000
Win Source Part Number	1326373-CSNL2010FT5L00
Ultra Librarian 3D Model	Ultra Librarian CSNL2010FT5L00 CAD Model

Description

The Stackpole Electronics Inc CSNL2010FT5L00 is a chip resistor that is suitable for use in electronic components.

Win Source Part Number: 1326373
Category: resistors
Packaging: reel - TR
Features: current sense and moisture resistance
Size: 0.200" L x 0.100" W (5.08mm x 2.54mm)
Height Seated (Max): 0.035" (0.90mm)
Tolerance: ±1%
Temperature Coefficient: ±50ppm/°C
Power: 1.5W
Composition: metal element
Resistance: 5 mOhms
Temperature Range: -55°C ~ 170°C
Compliance: ROHS3 compliant
ECCN: EAR99
