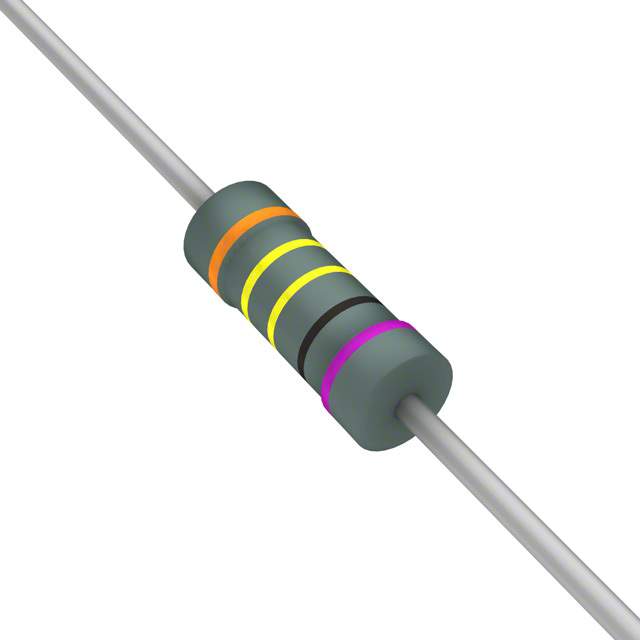

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Resistors
Manufacturer Stackpole Electronics Inc.
Series RNF
Packaging Tape in Box
Resistance (Ohms) 344
Tolerance ±0.1%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Features Flame Retardant Coating, Safety
Temperature Coefficient ±25ppm/°C
Operating Temperature Range -55°C ~ 155°C
Package Axial
Manufacturer Package Axial
Dimension 0.093" Dia x 0.250" L (2.35mm x 6.35mm)
Number of Terminations 2
Win Source Part Number 768286-RNF14BAE344R
Popularity Medium
Supply and Demand Status Limited
Family Name RNF
Introduction Date September 21, 2010
Country of Origin China, Japan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian RNF14BAE344R CAD Model

Description

The Stackpole Electronics Inc. RNF series resistor is a metal film composition resistor that comes in an axial package.

  • Resistance: 344 Ohms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Power: 0.25W, 1/4W
  • Operating Temperature: -55°C to 155°C
  • Coating: Flame Retardant
  • Safety: Compliant
  • Supply and Demand Status: Limited
  • Dimension: 0.093" Dia x 0.250" L (2.35mm x 6.35mm)
  • Manufacturer Package: Axial
