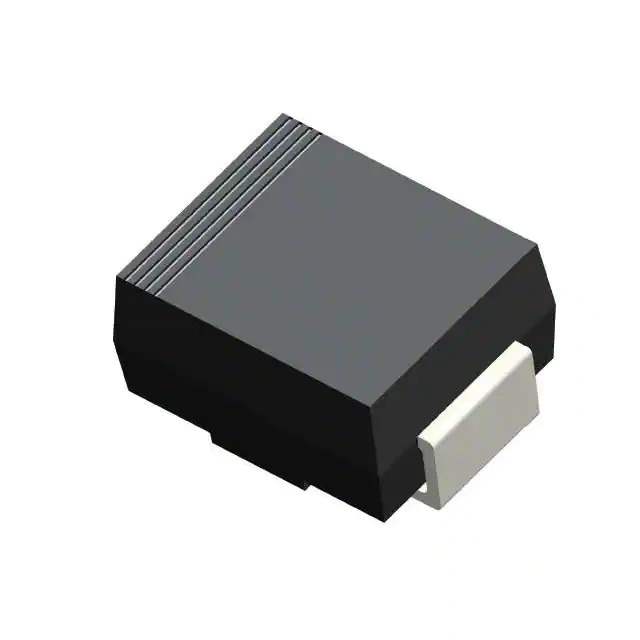

SS110 Real Image
Same model may have multiple batches, images only for reference.

SS110

Part No SS110
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 100V 1A SMA
Datasheet
SS110 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr SMC Diode Solutions
Series *
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 850 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 500 µA @ 100 V
Capacitance @ Vr, F 35pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package SMA (DO-214AC)
Operating Temperature - Junction -55°C ~ 150°C
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 676222-SS110
Ultra Librarian 3D Model Ultra Librarian SS110 CAD Model

Description

The 676222-SS110 is a fast recovery rectifier diode designed for high-speed electronic circuits.

  • Maximum DC Reverse Voltage: 100V
  • Average Rectified Current: 1A
  • Forward Voltage Drop: 850mV @ a forward current of 1A
  • Reverse Leakage Current: 500µA @ a reverse voltage of 100V
  • Capacitance: 35pF @ a reverse voltage of 4V and a frequency of 1MHz
  • Operating Temperature Range: -55°C to 150°C
  • Package: DO-214AC, SMA surface mount
  • Manufacturer: SMC Diode Solutions
  • Product Status: active
