Same model may have multiple batches, images only for reference.

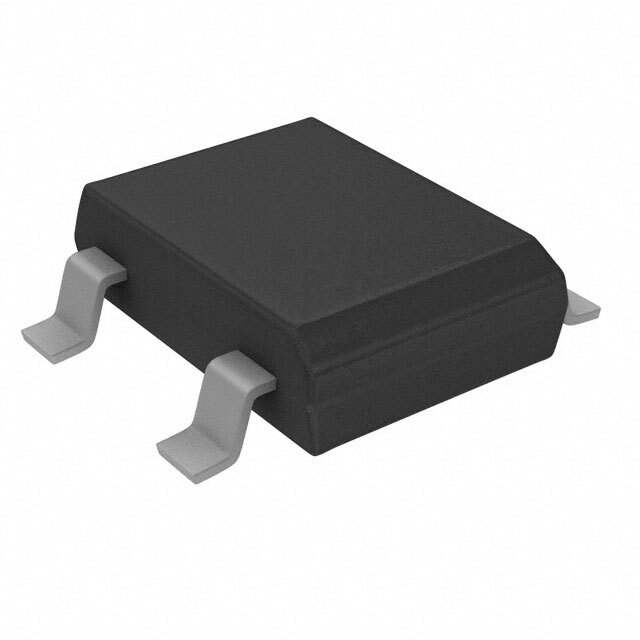

DB155S Real Image
Same model may have multiple batches, images only for reference.

DB155S

Part No DB155S
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1P 600V 1.5A DB-S
Datasheet
DB155S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 1.5 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package DB-S
Base Product Number DB155
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 584107-DB155S
Ultra Librarian 3D Model Ultra Librarian DB155S CAD Model

Description

The 584107-DB155S is a single phase bridge rectifier diode designed for rectification applications.

  • Forward Voltage (Max): 1.1 V @ 1.5 A
  • Reverse Leakage Current (Max): 5 μA @ 600 V
  • Current Rating: 1.5 A
  • Package Type: 4-SMD, Gull Wing
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C to 150°C
  • Standard Package: 1,500 pcs
  • Manufacturer: SMC Diode Solutions
  • Series: DB155
  • Market Status: Active
