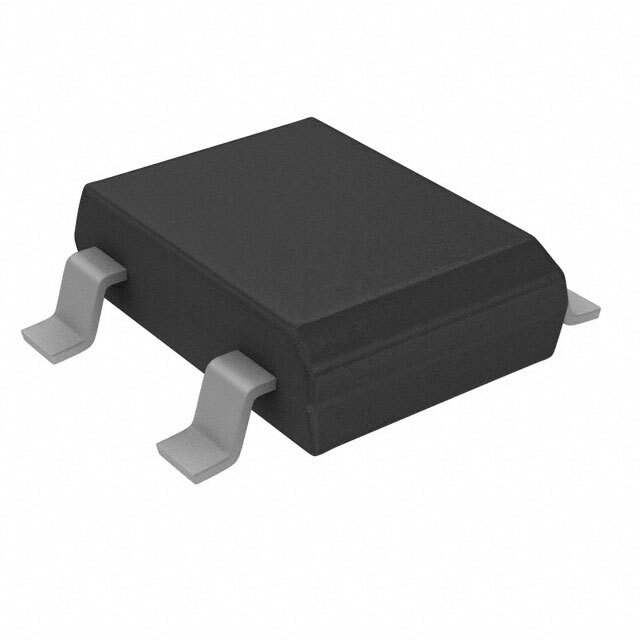

DB107S Real Image
Same model may have multiple batches, images only for reference.

DB107S

Part No DB107S
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 1A DB-S
Datasheet
DB107S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package DB-S
Base Product Number DB107
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 714053-DB107S
Ultra Librarian 3D Model Ultra Librarian DB107S CAD Model

Description

The 714053-DB107S is a single-phase bridge rectifier diode designed for standard applications.

  • Manufacturer: SMC Diode Solutions
  • Type: Single-Phase Bridge Rectifier Diode
  • Average Rectified Current: 1 A
  • Maximum Forward Voltage: 1.1 V @ 1 A
  • Peak Reverse Voltage: 1 kV
  • Reverse Leakage Current: 5 μA @ 1000 V
  • Mounting Type: Surface Mountable
  • Package: 4-SMD, Gull Wing
  • Operating Temperature: -55°C to 150°C
  • Status: Active
