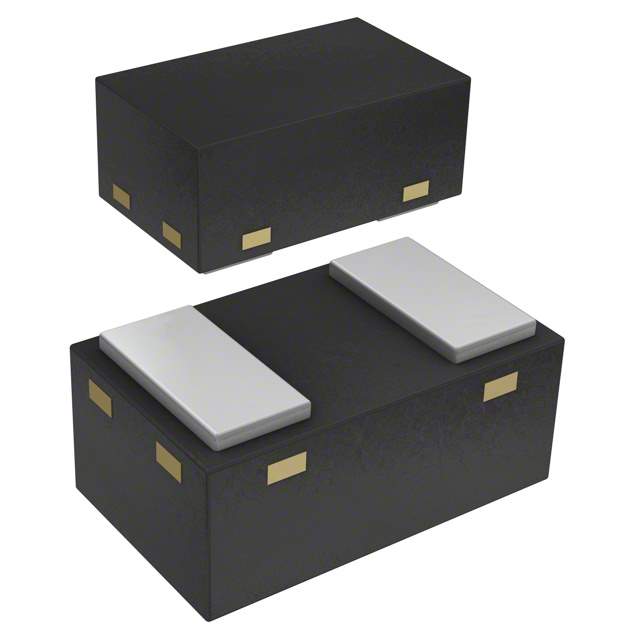

SMP1352-040LF Real Image
Same model may have multiple batches, images only for reference.

SMP1352-040LF

Part No SMP1352-040LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Diodes
Description RF DIODE PIN 200V 750MW 0402
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Skyworks Solutions Inc.
Packaging Reel
Diode Type PIN - Single
Voltage - Peak Reverse (Maximum) 200V
Current - Max 150mA
Capacitance at Vr, F 0.3pF at 20V, 1MHz
Resistance at If, F 1.35Ohm at 100mA, 100MHz
Power Dissipation (Maximum) 750mW
Temperature Range - Operating -65°C ~ 150°C
Manufacturer Package 0402
Supplier Device Package 0402
Part Number Series SMP1352-040
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 800835-SMP1352-040LF
Ultra Librarian 3D Model Ultra Librarian SMP1352-040LF CAD Model

Description

The Skyworks Solutions Inc. 800835-SMP1352-040LF is a PIN diode.

  • Maximum Current: 150mA
  • Voltage Rating: 200V
  • Capacitance: 0.3pF @ 20V, 1MHz
  • Resistance: 1.35Ohm @ 100mA, 100MHz
  • Operating Temperature Range: -65°C to 150°C
  • Package: 0402
  • Power Dissipation: 750mW
  • Dimensions: 0402
  • Supply and Demand: Sufficient
  • Pack Quantity: 3,000
