Same model may have multiple batches, images only for reference.

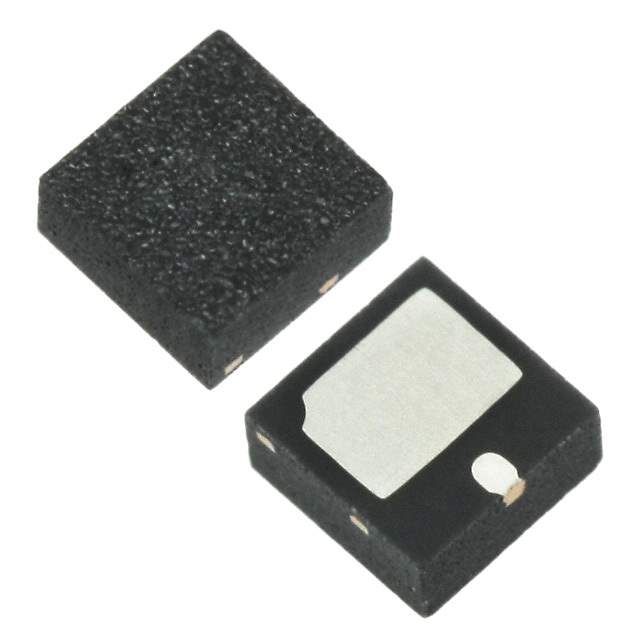

SMP1324-087LF Real Image
Same model may have multiple batches, images only for reference.

SMP1324-087LF

Part No SMP1324-087LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Diodes
Description RF DIODE PIN 2W 2QFN / RF Diode PIN - Single 200 mA 2 W 2-QFN (2x2)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - RF
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Diode Type PIN - Single
Current - Max 200 mA
Capacitance @ Vr, F 1.5pF @ 30V, 1MHz
Resistance @ If, F 750mOhm @ 50mA, 100MHz
Power Dissipation (Max) 2 W
Temperature Range - Operating -55°C ~ 175°C (TJ)
Package / Case 2-VSFN Exposed Pad
Supplier Device Package 2-QFN (2x2)
Base Product Number SMP1324
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Other Names 863-1165-2,SMP1324087LF,1287-SMP1324-087LF,863-1165-1,863-1165-6
Standard Package 3,000
Win Source Part Number 1134902-SMP1324-087LF
Ultra Librarian 3D Model Ultra Librarian SMP1324-087LF CAD Model

Description

The SMP1324-087LF diode is a PIN-single diode that is ideal for use in various electronic devices.

  • Maximum Current: 200 mA
  • Capacitance: 1.5pF @ 30V, 1MHz
  • Power Dissipation: 2 W
  • Package: 2-VSFN exposed pad
  • Supplier Device Package: 2-QFN (2x2)
  • Operating Temperature Range: -55°C to 175°C (TJ)
  • Manufacturer: Skyworks Solutions Inc.
