SKY65066-360LF

Part No SKY65066-360LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Amplifiers
Description IC AMP WLAN 2.3GHZ-2.7GHZ 8QFN / RF Amplifier IC Bluetooth, WLAN 2.3GHz ~ 2.7GHz 8-QFN (2x2)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Amplifiers
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Product Status Obsolete
Frequency 2.3GHz ~ 2.7GHz
P1dB 18dBm
Gain 20.5dB
Noise Figure 0.7dB
RF Type Bluetooth, WLAN
Voltage - Supply 4.75V ~ 5.25V
Current - Supply 75mA
Test Frequency 2.5GHz
Mounting SMD (SMT)

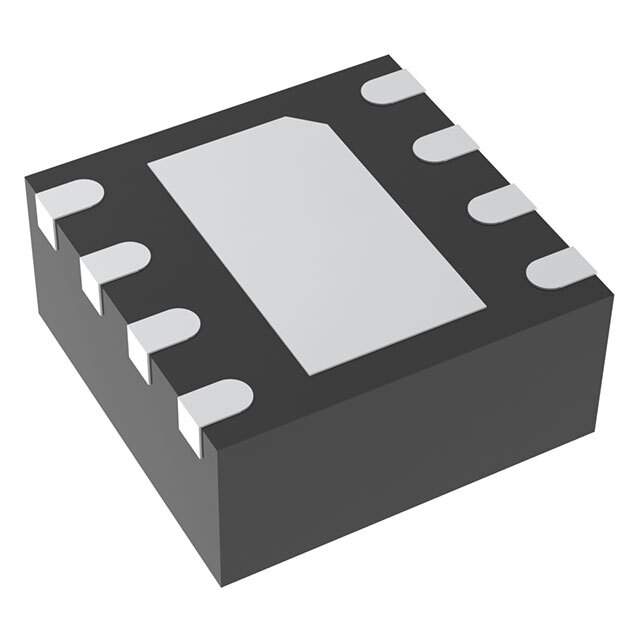

Package / Case 8-VFDFN Exposed Pad
Supplier Device Package 8-QFN (2x2)
Other Names 863-1268-1,863-1268-2,863-1268-6,SKY65066360LF
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 1236205-SKY65066-360LF
Ultra Librarian 3D Model Ultra Librarian SKY65066-360LF CAD Model

Description

The Skyworks Solutions Inc. SKY65066-360LF is an RF amplifier with a frequency range of 2.3GHz to 2.7GHz and a test frequency of 2.5GHz.

  • Gain: 20.5dB
  • Noise Figure: 0.7dB
  • RF Type: Bluetooth and WLAN
  • Voltage Supply Range: 4.75V to 5.25V
  • Current Supply: 75mA
  • Package Type: 8-VFDFN Exposed Pad
  • Standard Package: 3,000
  • MSL level: 1 (Unlimited)
  • HTSUS: 8542.33.0001
