Same model may have multiple batches, images only for reference.

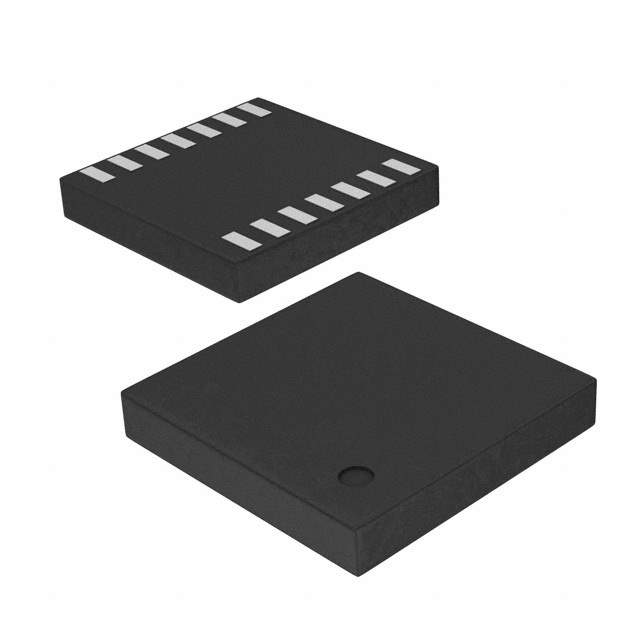

SI8273ABD-IMR Real Image
Same model may have multiple batches, images only for reference.

SI8273ABD-IMR

Part No SI8273ABD-IMR
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 2.5KV GATE DRVR 14LGA / 4A Gate Driver Capacitive Coupling 2500Vrms 2 Channel 14-LGA (5x5)
Datasheet
SI8273ABD-IMR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Package Tape & Reel (TR)
Product Status Not For New Designs
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 200kV/µs
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Pulse Width Distortion (Max) 8ns
Rise / Fall Time (Typ) 10.5ns, 13.3ns
Current - Output High, Low 1.8A, 4A
Current - Peak Output 4A
Voltage - Output Supply 4.6V ~ 30V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 14-VFLGA
Supplier Device Package 14-LGA (5x5)
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8273
Standard Package 2,500
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243778-SI8273ABD-IMR
Ultra Librarian 3D Model Ultra Librarian SI8273ABD-IMR CAD Model

Description

The SI8273ABD-IMR is a 1.8A/4A Dual-Channel Isolated Gate Driver, designed for automotive applications. It features capacitive coupling technology and has a voltage isolation of 2500Vrms.

  • Voltage Isolation: 2500Vrms
  • Common Mode Transient Immunity: 200kV/μs
  • Propagation Delay: 75ns
  • Rise/Fall Time: 10.5ns/13.3ns
  • Pulse Width Distortion: 8ns (max)
  • Package: 14-LGA
  • Temperature Range: -40°C to 125°C
  • Compliant with: CQC, CSA, UR, and VDE
