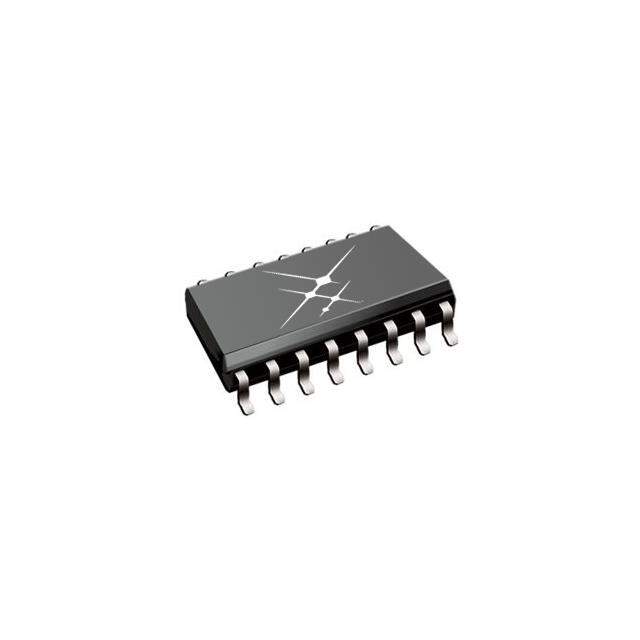

SI8230AB-D-IS1R Real Image
Same model may have multiple batches, images only for reference.

SI8230AB-D-IS1R

Part No SI8230AB-D-IS1R
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 2.5KV GATE DRVR 16SOIC / 500mA Gate Driver Capacitive Coupling 2500Vrms 2 Channel 16-SOIC
Datasheet
SI8230AB-D-IS1R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tape & Reel (TR)
Technology Capacitive Coupling
Number of Channels 2
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 20kV/µs
Propagation Delay tpLH / tpHL (Max) 60ns, 60ns
Pulse Width Distortion (Max) 5.6ns
Rise / Fall Time (Typ) 20ns, 20ns (Max)
Current - Output High, Low 250mA, 500mA
Current - Peak Output 500mA
Voltage - Output Supply 6.5V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SOIC
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8230
Standard Package 2,500
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243670-SI8230AB-D-IS1R
Ultra Librarian 3D Model Ultra Librarian SI8230AB-D-IS1R CAD Model

Description

The SI8230AB-D-IS1R is an Isolator Gate Driver with 2 channels.

  • Category: Isolators - Gate Drivers
  • Series: Automotive, AEC-Q100
  • Technology: Capacitive Coupling
  • Voltage Isolation: 2500Vrms
  • Current Output High: 250mA
  • Current Output Low: 500mA
  • Rise/Fall Time (Typ): 20ns, 20ns (Max)
  • Propagation Delay tpLH / tpHL (Max): 60ns, 60ns
  • Pulse Width Distortion (Max): 5.6ns
  • Package: 16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SOIC
  • Operating Temperature Range: -40°C ~ 125°C
  • ECCN: EAR99
  • MSL Level: 2A (4 Weeks)
  • Voltage Output Supply: 6.5V ~ 24V
  • HTSUS: 8542.39.0001
  • Manufacturer: Skyworks Solutions Inc.
  • Approvals: CQC, CSA, UR, and VDE
