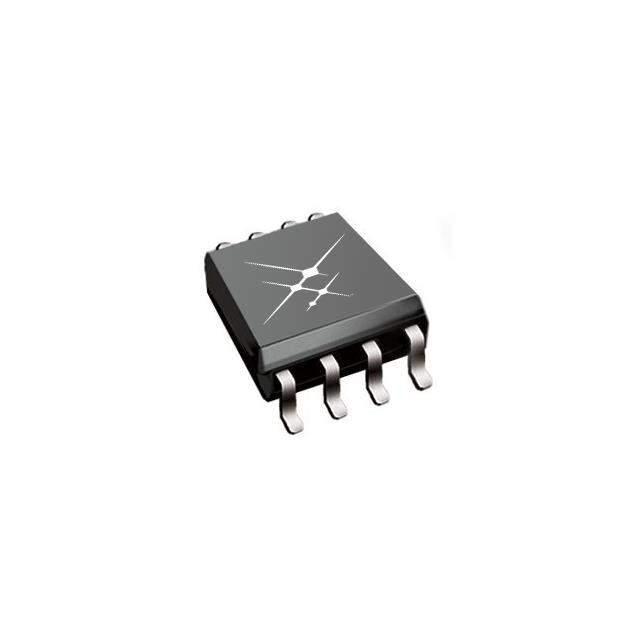

SI8220CB-D-IS Real Image
Same model may have multiple batches, images only for reference.

SI8220CB-D-IS

Part No SI8220CB-D-IS
Manufacturer Skyworks Solutions Inc.
Catalog Isolators - Gate Drivers
Description DGTL ISO 2.5KV GATE DRIVER 8SOIC / 2.5A Gate Driver Capacitive Coupling 2500Vrms 1 Channel 8-SOIC
Datasheet
SI8220CB-D-IS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Isolators - Gate Drivers
Mfr Skyworks Solutions Inc.
Series Automotive, AEC-Q100
Package Tube
Technology Capacitive Coupling
Number of Channels 1
Voltage - Isolation 2500Vrms
Common Mode Transient Immunity (Min) 30kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max) 60ns, 40ns
Rise / Fall Time (Typ) 20ns, 20ns (Max)
Current - Output High, Low 1.5A, 2.5A
Current - Peak Output 2.5A
Voltage - Forward (Vf) (Typ) 2.5V (Max)
Current - DC Forward (If) (Max) 30 mA
Voltage - Output Supply 12.2V ~ 24V
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOIC
Approval Agency CQC, CSA, UR, VDE
Base Product Number SI8220
Other Names 336-4676,SI8220CB-D-IS
Standard Package 96
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1243598-SI8220CB-D-IS
Ultra Librarian 3D Model Ultra Librarian SI8220CB-D-IS CAD Model

Description

The SI8220CB-D-IS is a 1-channel capacitive coupling isolator that is designed for gate driving applications.

  • Channels: 1
  • Package: 8-SOIC
  • Voltage Isolation: 2500Vrms
  • Common Mode Transient Immunity: 30kV/μs
  • Current Output High: 1.5A
  • Current Output Low: 2.5A
  • Current DC Forward: 30mA
  • Voltage Forward: 2.5V (max)
  • Rise Time: 20ns (max)
  • Fall Time: 20ns (max)
  • Propagation Delay tpLH / tpHL (Max): 60ns, 40ns
  • Peak Output Current: 2.5A
  • Pulse Width Distortion (max): -
  • Operating Temperature Range: -40°C to 125°C
