SKY13418-485LF

Part No SKY13418-485LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Switches
Description IC ANT SW SP8T 0.1-3.0GHZ 14QFN
Datasheet
SKY13418-485LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Skyworks Solutions Inc.
Packaging Reel - TR
Status Active
Frequency - Lower 100MHz
Frequency - Upper 3GHz
Isolation @ Frequency 24dB @ 2GHz (typ)
Insertion Loss @ Frequency 0.6dB @ 2GHz
IIP3 66dBm (typ)
Circuit SP8T
P1dB 37dBm
Impedance 50 Ohm
Temperature Range - Operating -40°C to 90°C
Supply Voltage - Operating 2.5 V to 4.8 V

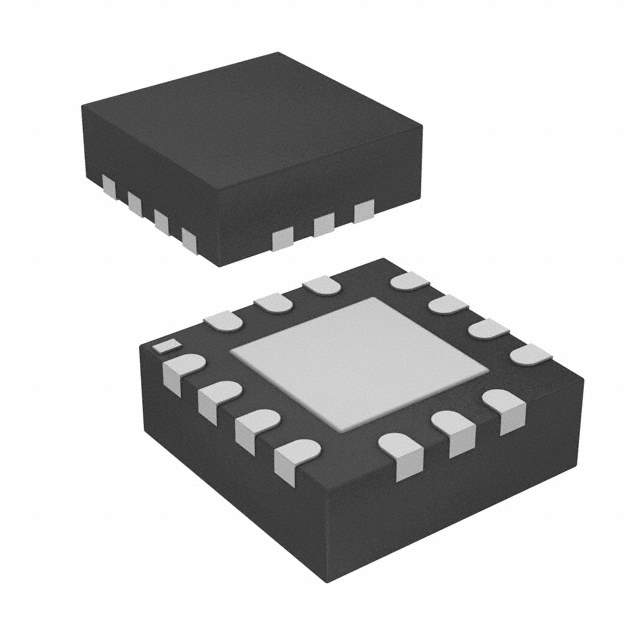

Case / Package 14-QFN (2x2)
Win Source Part Number 028793-SKY13418-485LF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SKY13418-485LF CAD Model

Description

The Skyworks Solutions Inc. SP8T circuit is a high-performance component designed for RF/IF and RFID applications.

  • Circuit: SP8T
  • Frequency Range: 100MHz to 3GHz
  • Impedance: 50 Ohm
  • Insertion Loss: 0.6dB @ 2GHz
  • Isolation: 24dB @ 2GHz
  • IIP3: 66dBm
  • P1dB: 37dBm
  • Operating Temperature Range: -40°C to 90°C
  • Supply Voltage Range: 2.5V to 4.8V
  • Package: 14-QFN (2x2)
  • Availability: reel
