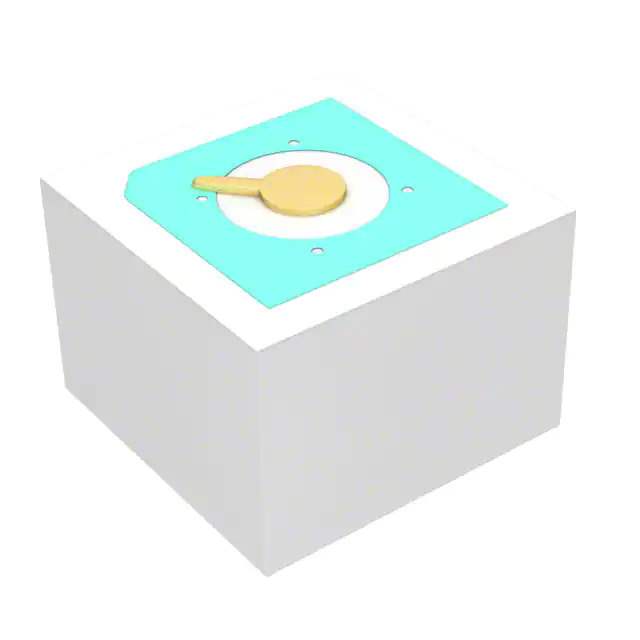

CDC7630-000 Real Image
Same model may have multiple batches, images only for reference.

CDC7630-000

Part No CDC7630-000
Manufacturer Skyworks Solutions Inc.
Catalog RF Diodes
Description RF DIODE SCHOTTKY 2V 75MW CHIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr Skyworks Solutions Inc.
Package Bulk
Product Status Active
Diode Type Schottky - Single
Voltage - Peak Reverse (Max) 2V
Current - Max 100 mA
Power Dissipation (Max) 75 mW
Temperature Range - Operating -55°C ~ 150°C (TA)
Package / Case Die
Supplier Device Package Chip
Base Product Number CDC7630
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 577906-CDC7630-000
Ultra Librarian 3D Model Ultra Librarian CDC7630-000 CAD Model

Description

The CDC7630 is a single Schottky diode part of the discrete semiconductor products - diodes - RF diodes category and manufactured by Skyworks Solutions Inc.

  • Maximum Current Rating: 100 mA
  • Peak Reverse Voltage: 2V
  • Power Dissipation: 75 mW
  • Package Type: Die
  • Operating Temperature: -55°C to 150°C (TA)
  • Manufacturer: Skyworks Solutions Inc.
  • Product Status: Active
