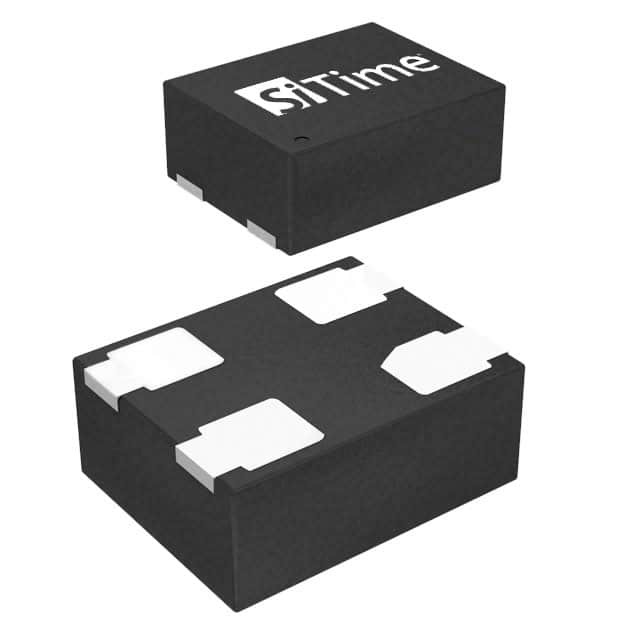

Same model may have multiple batches, images only for reference.
SIT8924BA-72-18E-25.000000 SiTIME
Same model may have multiple batches, images only for reference.

SIT8924BA-72-18E-25.000000

Part No SIT8924BA-72-18E-25.000000
Manufacturer SiTIME
Catalog Oscillators
Datasheet
SIT8924BA-72-18E-25.000000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr SiTime
Series SiT8924B
Package Strip
Base Resonator MEMS
Type XO (Standard)
Frequency 25 MHz
Function Enable/Disable
Output LVCMOS, LVTTL
Voltage - Supply 1.8V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 125°C
Current - Supply (Max) 4.5mA
Ratings AEC-Q100
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1315797-SIT8924BA-72-18E-25.000000
Ultra Librarian 3D Model Ultra Librarian SIT8924BA-72-18E-25.000000 CAD Model

Description

The SiTIME 1315797-SIT8924BA-72-18E-25.000000 is an XO (standard) oscillator with a frequency of 25 MHz.

  • Manufacturer: SiTIME
  • Category: Crystals, Oscillators, Resonators
  • Frequency: 25 MHz
  • Voltage Supply: 1.8V
  • Current Supply: 4.5mA
  • Package/Case: 4-SMD, No Lead
  • Operating Temperature: -40°C to 125°C
