Same model may have multiple batches, images only for reference.

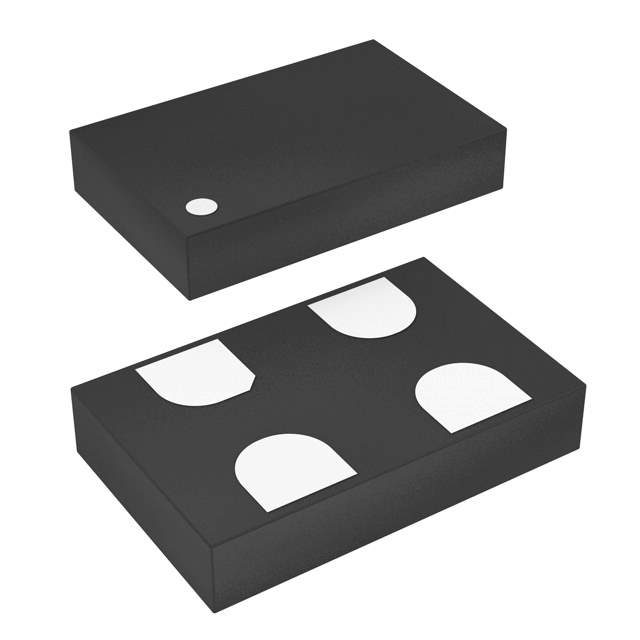

SIT8209AI-32-33E-125.003750T Real Image
Same model may have multiple batches, images only for reference.

SIT8209AI-32-33E-125.003750T

Part No SIT8209AI-32-33E-125.003750T
Manufacturer SiTIME
Catalog Oscillators
Description OSC MEMS 125.00375MHZ LVCMOS TTL / Oscillator MEMS 125.00375MHz ±25ppm (Stability) 15pF LVCMOS/LVTTL 55% 3.3V 4-Pin QFN SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer SiTIME
Series SiT8209
Packaging Reel package
Type MEMS (Silicon)
Frequency 125.00375MHz
Function Enable/Disable
Output LVCMOS, LVTTL
Operating Supply Voltage 3.3V
Frequency Stability ±25ppm
Operating Temperature Range -40°C ~ 85°C
Maximum Supply Current 36mA
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Maximum) 0.031" (0.80mm)
Current - Supply (Disable) (Maximum) 31mA
Win Source Part Number 794423-SIT8209AI-32-33E-125.003750T
Popularity Medium
Supply and Demand Status Limited
Quantity per package 3k pcs
Introduction Date February 10, 2011
ECCN EAR99
Country of Origin Malaysia, Taiwan, Thailand
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SIT8209AI-32-33E-125.003750T CAD Model

Description

The SiT8209AI-32-33E-125.003750T is a MEMS (Silicon) oscillator manufactured by SiTIME.

  • Frequency: 125.00375MHz
  • Frequency Stability: ±25ppm
  • Operating Supply Voltage: 3.3V
  • Package: 4-SMD, No Lead
  • Enable/Disable Function: Yes
  • Output: LVCMOS, LVTTL
  • Maximum Supply Current: 36mA
  • Current Supply (Disable): 31mA
  • Compliance: Halogen-Free
  • Estimated EOL Date: 2025
