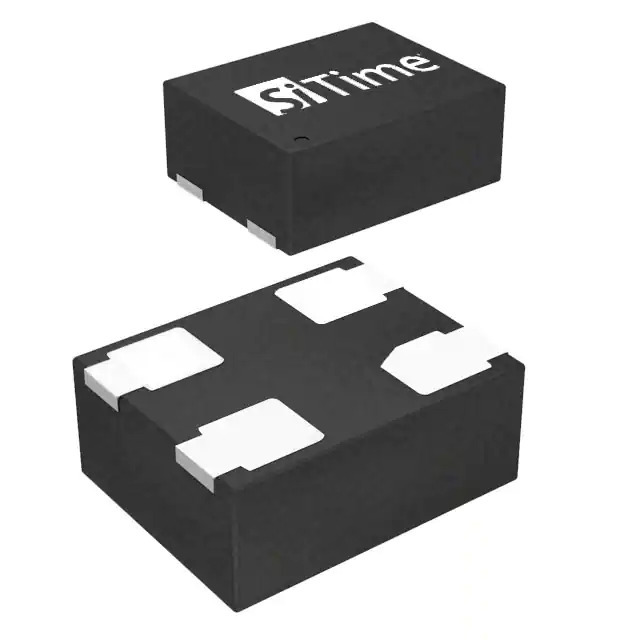

Same model may have multiple batches, images only for reference.
SIT1602BI-72-33E-77.760000 SiTIME
Same model may have multiple batches, images only for reference.

SIT1602BI-72-33E-77.760000

Part No SIT1602BI-72-33E-77.760000
Manufacturer SiTIME
Catalog Oscillators
Description MEMS OSC XO 77.7600MHZ H/LV-CMOS
Datasheet
SIT1602BI-72-33E-77.760000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr SiTime
Series SiT1602B
Package Strip
Product Status Active
Base Resonator MEMS
Type XO (Standard)
Frequency 77.76 MHz
Function Enable/Disable
Output HCMOS, LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±25ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Spread Spectrum Bandwidth -
Current - Supply (Max) 4.5mA
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1366532-SIT1602BI-72-33E-77.760000
Ultra Librarian 3D Model Ultra Librarian SIT1602BI-72-33E-77.760000 CAD Model

Description

The SiTime 1366532-SIT1602BI-72-33E-77.760000 is a surface mount crystal oscillator with a frequency of 77.76 MHz.

  • Temperature Range: -40°C to 85°C
  • Package / Case: 4-SMD, No Lead
  • Dimensions: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Seated Height: 0.031" (0.80mm)
  • Voltage Supply: 3.3V
  • Supply Current (Max): 4.5mA
  • Base Resonator: MEMS
  • Output: HCMOS and LVCMOS
  • Frequency Stability: ±25ppm
  • Series: SiT1602B
  • Manufacturer: SiTime
  • Product Status: Active
