Same model may have multiple batches, images only for reference.

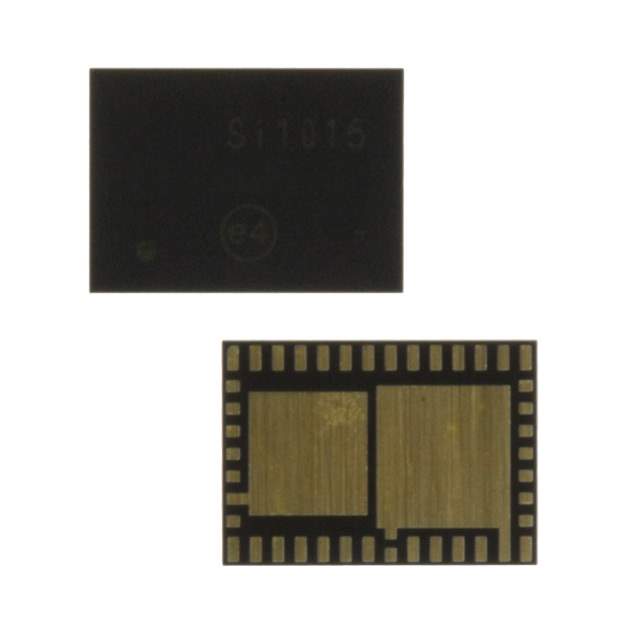

SI1000-ESA2-GM Real Image
Same model may have multiple batches, images only for reference.

SI1000-ESA2-GM

Part No SI1000-ESA2-GM
Manufacturer Silicon Labs
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU ISM<1GHZ 42WFQFN  /  IC RF TxRx + MCU General ISM < 1GHz EZRadioPro 240MHz ~ 960MHz 42-WFQFN Exposed Pad
Datasheet
SI1000-ESA2-GM Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr Silicon Labs
Package Tube
Product Status Obsolete
Type TxRx + MCU
RF Family/Standard General ISM < 1GHz
Protocol EZRadioPro
Modulation FSK, GFSK, OOK
Frequency 240MHz ~ 960MHz
Data Rate (Max) 256kbps
Power - Output 20dBm
Sensitivity -121dBm
Memory Size 64kB Flash, 4.35kB RAM
Serial Interfaces I2C, SPI, UART
GPIO 22
Voltage - Supply 1.8V ~ 3.6V
Current - Receiving 18.5mA
Current - Transmitting 85mA
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 42-WFQFN Exposed Pad
Supplier Device Package 42-QFN (5x7)
Base Product Number SI1000
Standard Package 43
MSL Level 2 (1 Year)
ECCN 5A991G
HTSUS 8542.31.0001
Win Source Part Number 1235752-SI1000-ESA2-GM
Ultra Librarian 3D Model Ultra Librarian SI1000-ESA2-GM CAD Model

Description

The Silicon Labs SI1000-ESA2-GM is an RF transceiver IC suitable for use in various applications.

  • Type: TxRx + MCU
  • Frequency Range: 240MHz ~ 960MHz
  • Protocol: EZRadioPro
  • Memory Size: 64kB Flash, 4.35kB RAM
  • Power Output: 20dBm
  • Sensitivity: -121dBm
  • Data Rate (max): 256kbps
