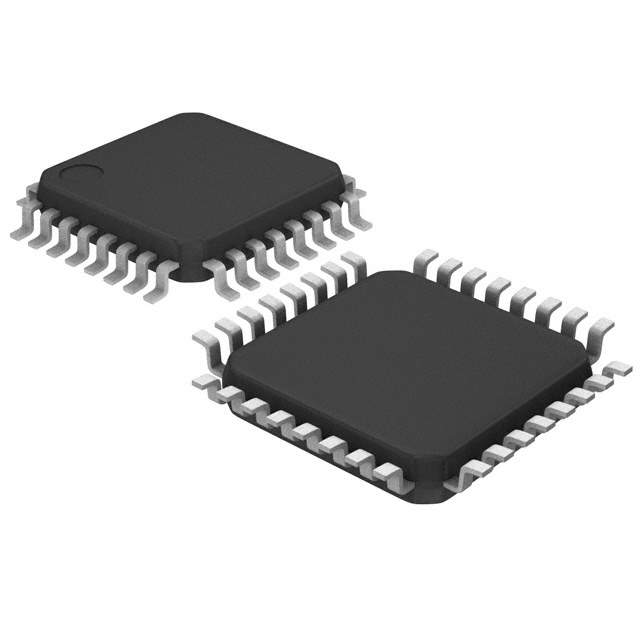

Same model may have multiple batches, images only for reference.

C8051F560-IQR

Name: C8051F560-IQR
Brand: Silicon Labs
SKU: 1019509
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	C8051F560-IQR
Manufacturer	Silicon Labs
Catalog	Embedded - Microcontrollers
Description	IC MCU 8BIT 32KB FLASH 32QFP / 8051 series Microcontroller IC 8-Bit 50MHz 32KB (32K x 8) FLASH 32-QFP (7x7)
Datasheet	C8051F560-IQR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr	Silicon Labs
Series	C8051F56x
Package	Tape & Reel (TR)
Core Processor	8051
Core Size	8-Bit
Speed	50MHz
Connectivity	SMBus (2-Wire/I²C), CANbus, LINbus, SPI, UART/USART
Peripherals	POR, PWM, Temp Sensor, WDT
Number of I/O	25
Program Memory Size	32KB (32K x 8)
Program Memory Type	FLASH
RAM Size	2.25K x 8
Supply Voltage - Operating	1.8V ~ 5.25V
Data Converters	A/D 25x12b
Oscillator Type	Internal
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting	SMD (SMT)
Package / Case	32-LQFP
Supplier Device Package	32-QFP (7x7)
Base Product Number	C8051F560
MSL Level	3 (168 Hours)
ECCN	3A991A2
HTSUS	8542.31.0001
Standard Package	500
Win Source Part Number	1019509-C8051F560-IQR
Ultra Librarian 3D Model	Ultra Librarian C8051F560-IQR CAD Model

Alternative Products

Description

The C8051F560-IQR is an 8-bit microcontroller from Silicon Labs.

Series: C8051F56x
Core Processor: 8051
Speed: 50MHz
Package: 32-LQFP
Program Memory Size: 32KB (32K x 8)
Program Memory Type: FLASH
Connectivity: SMBus (2-Wire/I²C), CANbus, LINbus, SPI, and UART/USART
I/O Ports: 25
Peripherals: POR, PWM, Temp Sensor, and WDT
Data Converter: A/D 25x12b
Oscillator Type: Internal
Temperature Range: -40°C to 125°C (TA)
Supply Voltage: 1.8V to 5.25V
