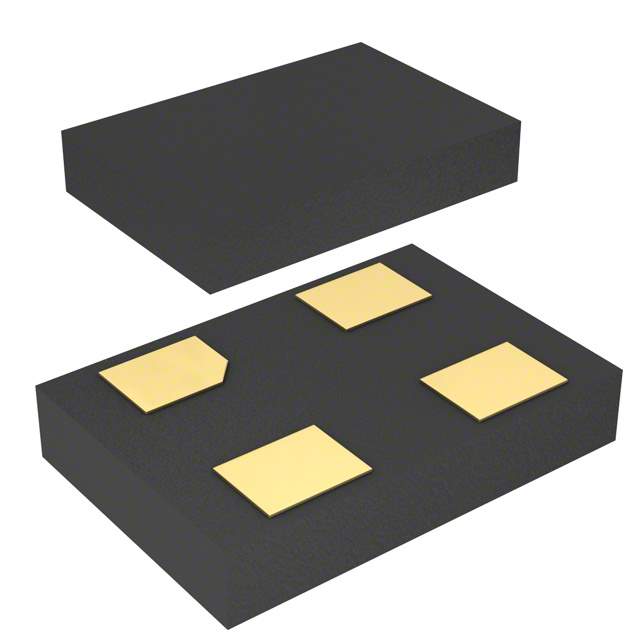

Same model may have multiple batches, images only for reference.

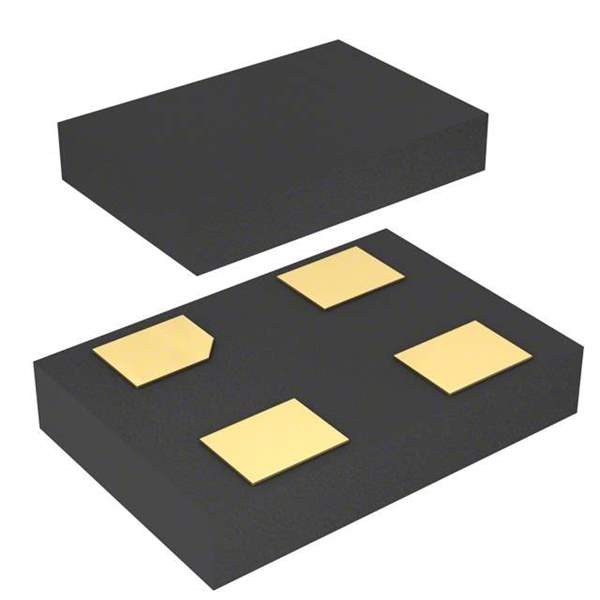

501AAA25M0000BAFR Real Image
Same model may have multiple batches, images only for reference.

501AAA25M0000BAFR

Part No 501AAA25M0000BAFR
Manufacturer Silicon Labs
Catalog Oscillators
Description OSC CMEMS 25.0000MHZ LVCMOS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Silicon Labs
Packaging Reel
Part Status Obsolete (End Of Life)
Base Resonator MEMS
Type CMEMS
Frequency 25MHz
Function Enable/Disable
Output LVCMOS
Supply Voltage (V) 1.7V ~ 3.6V
Frequency Stability ±50ppm
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Maximum) 2.5mA
Mounting Style SMD
Manufacturer Package 4-SMD, No Lead
Dimension 0.157" L x 0.126" W (4.00mm x 3.20mm)
Height - Seated (Maximum) 0.035" (0.90mm)
Current - Supply (Disable) (Maximum) 2.5mA
Manufacturer Pack Quantity 1,500
MSL Level 2 (1 Year)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804365-501AAA25M0000BAFR
Ultra Librarian 3D Model Ultra Librarian 501AAA25M0000BAFR CAD Model

Description

The Silicon Labs 501AAA25M0000BAFR is a CMEMS device that operates at a frequency of 25MHz.

  • Frequency: 25MHz
  • Frequency Stability: ±50ppm
  • Spread Spectrum Bandwidth: -
  • Current Supply (Disable) (Maximum): 2.5mA
  • Temperature Range: -20°C to 70°C
  • Package: 4-SMD, No Lead
  • Height - Seated (Maximum): 0.035" (0.90mm)
  • Supply Voltage (V): 1.7V to 3.6V
  • Manufacturer Pack Quantity: 1,500
  • MSL Level: 2 (1 Year)
