The MOC3010 from ON Semiconductor is a versatile optoisolator with a triac driver output, designed for interfacing between electronic controls and power triacs to control resistive and inductive loads for 115 VAC operations. This device is particularly suitable for applications where voltage isolation and noise immunity are required, making it ideal for use in solid-state relays, industrial controls, office equipment, and consumer appliances.

Key Features

• Voltage Isolation: The MOC3010 provides excellent voltage isolation of 7500V peak, ensuring safe separation between the high-voltage input and the low-voltage control circuitry.
• Triac Driver Output: This optoisolator comes with a standard triac structure as the output, capable of driving a main power triac, which in turn can control various AC loads.
• Current Transfer Ratio (CTR): It has a specified minimum CTR of 20% at an input current of 10mA, allowing for reliable operation and easier design of the input circuit.

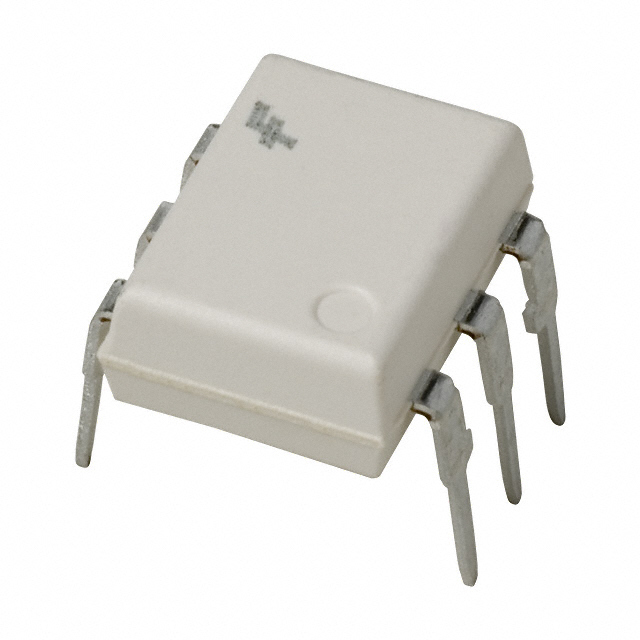

• Package Options: Available in a 6-pin DIP package, the MOC3010 is designed for through-hole mounting, which is convenient for prototyping and mass production.
• Compliance: The device is UL recognized and complies with the required safety standards, providing additional assurance for its performance and reliability.

Applications

• Solid-state relays
• Industrial controls
• Office equipment
• Consumer appliances
• Motor control systems

Overall, the MOC3010 is a highly reliable component that simplifies the design of zero-crossing circuits and provides a cost-effective solution for controlling AC loads with solid-state switches. Its durable construction and compliance with safety standards make it a dependable choice for designers looking to integrate isolation and control in their AC power systems.
