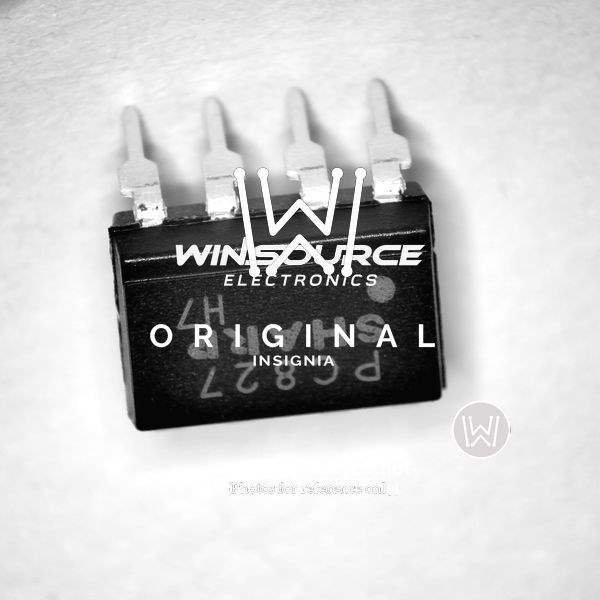

PC827 Real Image PC827 Real Image
Same model may have multiple batches, images only for reference.
PC827 Real Image PC827 Real Image
PC827 Real Image PC827 Real Image
Same model may have multiple batches, images only for reference.

PC827

Part No PC827
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV 2CH TRANS 8DIP / Optoisolator Transistor Output 5000Vrms 2 Channel 8-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Sharp Microelectronics
Package Tube
Product Status Obsolete
Number of Channels 2
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 50% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Rise / Fall Time (Typ) 4µs, 3µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 35V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C ~ 100°C
Mounting Type Through Hole
Package / Case 8-DIP (0.300", 7.62mm)
Supplier Device Package 8-DIP
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 269234-PC827
Ultra Librarian 3D Model Ultra Librarian PC827 CAD Model

Description

The PC827 is a transistor photovoltaic output optoisolator from Sharp Microelectronics.

  • Application: Designed for applications that require electrical isolation and signal transmission between two circuits
  • Package: 8-DIP
  • Mounting: Through-hole mounting on a PCB
  • Voltage Isolation: 5000Vrms
  • Output Type: Transistor output type
  • Current Transfer Ratio: 50% @ 5mA
  • Maximum Output Voltage: 35V
  • Vce Saturation: 200mV
  • Suitable for: Motor control, power supply regulation, and digital signal isolation
  • Status: Obsolete
