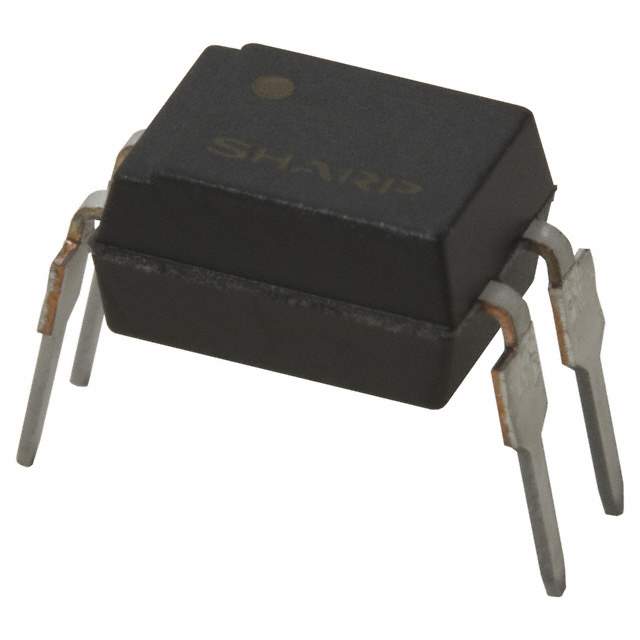

PC817X2NSZ1B Real Image
Same model may have multiple batches, images only for reference.

PC817X2NSZ1B

Part No PC817X2NSZ1B
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATOR 5KV TRANS DIP / Optoisolator Transistor Output 1 Channel 4-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr SHARP/Socle Technology
Package Tube
Number of Channels 1
Rise / Fall Time (Typ) 4µs, 3µs
Input Type DC
Output Type Transistor
Voltage - Output (Max) 80V
Current - Output / Channel 50mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C ~ 100°C
Mounting Type Through Hole
Package / Case 4-DIP (0.300", 7.62mm)
Supplier Device Package 4-DIP
Base Product Number PC817X2
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1348724-PC817X2NSZ1B
Ultra Librarian 3D Model Ultra Librarian PC817X2NSZ1B CAD Model

Description

The PC817X2NSZ1B is a photovoltaic output optoisolator transistor from Sharp/Socle Technology.

  • Voltage Isolation: Up to 80V
  • Current Transfer Ratio: 50mA
  • Turn On/Turn Off Time (Typ): 4μs and 3μs respectively
  • Package/Case: 4-DIP (0.300", 7.62mm)
  • Mounting Type: Through Hole
  • Temperature Range: -30°C ~ 100°C
  • ECCN: EAR99
  • Voltage Forward (Vf) (Typ): 1.2V
  • Maximum Forward Current (If): 50mA
