Same model may have multiple batches, images only for reference.

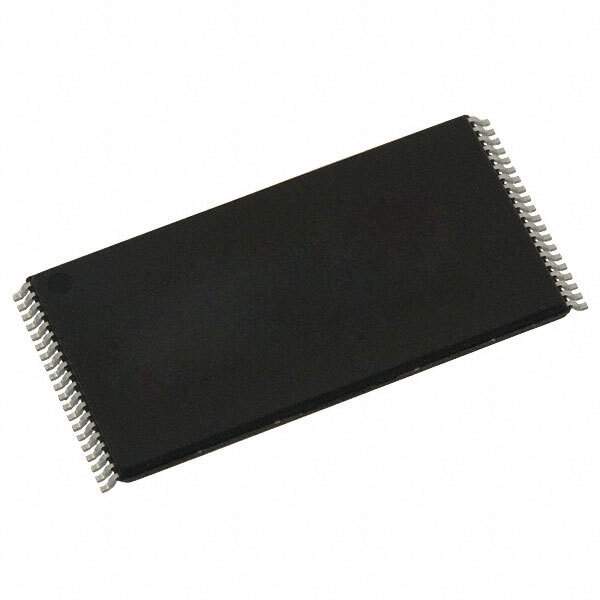

LH28F008SCHT-TE Real Image
Same model may have multiple batches, images only for reference.

LH28F008SCHT-TE

Part No LH28F008SCHT-TE
Manufacturer Sharp Microelectronics
Catalog Flash
Description IC FLASH 8MBIT 85NS 40TSOP / Flash 3.3V 8M-bit 1M x 8 150ns 40-Pin TSOP
Datasheet
LH28F008SCHT-TE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Sharp Microelectronics
Packaging Tray
Part Status Obsolete(EOL)
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH
Memory Size 8Mb (1M x 8)
Write Cycle Time - Word, Page 85ns
Access Time 85ns
Memory Interface Parallel
Operating Supply Voltage 2.7 V ~ 5.5 V
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD
Package 40-TFSOP (0.724", 18.40mm Width)
Manufacturer Package 40-TSOP
Win Source Part Number 778596-LH28F008SCHT-TE
Popularity Medium
Supply and Demand Status Limited
Family Name LH28F008SCHT-TE
Introduction Date November 03, 2004
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian LH28F008SCHT-TE CAD Model

Description

The 778596-LH28F008SCHT-TE from Sharp Microelectronics is a non-volatile memory type product.

  • Memory Size: 8Mb (1M x 8)
  • Access Time: 85ns
  • Format: Flash Memory
  • Operating Supply Voltage: 2.7 V to 5.5 V
  • Operating Temperature Range: -40°C to 85°C (TA)
  • Package: 40-TFSOP (0.724", 18.40mm Width)
  • Mounting: SMD
  • Category: Integrated Circuits (ICs)
  • Supply and Demand Status: Limited
