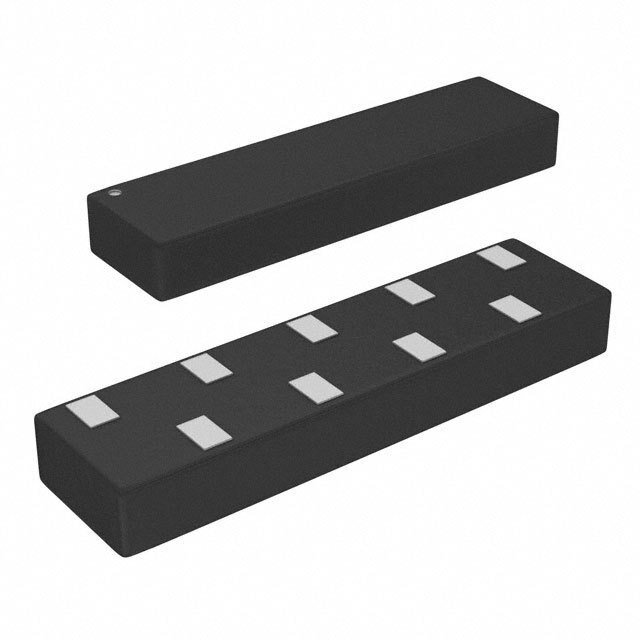

Same model may have multiple batches, images only for reference.

RCLAMP7528T.TNT

Name: RCLAMP7528T.TNT
Brand: Semtech Corporation
SKU: 291412
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RCLAMP7528T.TNT
Manufacturer	Semtech Corporation
Catalog	TVS - Diodes
Description	ESD Suppressor Diode Diode Array Uni-Dir 5V 9-Pin SLP T/R / TVS DIODE 5VWM 15VC SLP2611N9T
Datasheet	RCLAMP7528T.TNT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Circuit Protection
Manufacturer	Semtech Corporation
Packaging	Reel - TR
Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	8
STAND-OFF Voltage (Vwm)	5V (Max)
Minimum Breakdown Voltage	6.5V
Max Clamping Voltage	15V
Peak Pulse Current(Ippm)	5A (8/20μs)
Power Dissipation - Pd	75W
Power Line Protection	Yes
Applications	HDMI
Capacitance @ Frequency	0.5pF @ 1MHz
Temperature Range - Operating	-55°C to 125°C (TJ)
Mounting	SMD (SMT)
Case / Package	SLP2611N9T
Win Source Part Number	046142-RCLAMP7528T.TNT
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Application Field	Used in Computers & Computer Peripherals, Communications & Networking, Imaging, Video & Vision, RF Communications, Sensing & Instrumentation, Power Management, Industrial, Multimedia
Quantity per package	10k pcs
Family Name	RCLAMP7528T
Introduction Date	May 16, 2016
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Ultra Librarian 3D Model	Ultra Librarian RCLAMP7528T.TNT CAD Model

Alternative Products

Description

The Semtech Corporation RCLAMP7528T.TNT is a high-quality component that is designed to provide superior performance in various applications.

Feature: Designed to balance the supply and demand status
Advantage: Ensuring that it is readily available when you need it
Category: Part of the Circuit Protection family
Ideal For: Use in a range of applications, including computers and computer peripherals, communications and networking, imaging, video and vision, RF communications, sensing and instrumentation, power management, industrial, and multimedia
