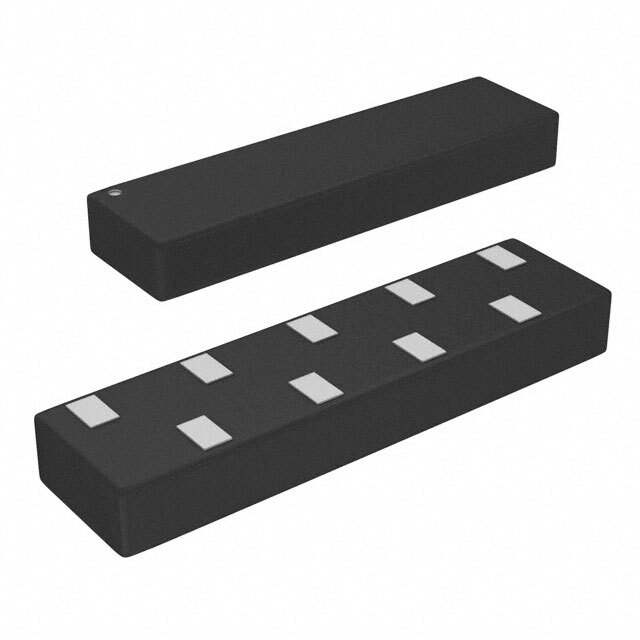

Same model may have multiple batches, images only for reference.

RCLAMP3328P.TZT

Name: RCLAMP3328P.TZT
Brand: Semtech Corporation
SKU: 748575
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RCLAMP3328P.TZT
Manufacturer	Semtech Corporation
Catalog	TVS - Diodes
Description	TVS DIODE 3.3VWM 10.5V SGP3810N9
Datasheet	RCLAMP3328P.TZT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Semtech Corporation
Series	RailClamp®
Package	Tape & Reel
Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	8
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	3.8V
Voltage - Clamping (Max) @ Ipp	10.5V
Current - Peak Pulse (10/1000µs)	5A (8/20µs)
Power - Peak Pulse	75W
Power Line Protection	Yes
Applications	HDMI
Capacitance @ Frequency	0.4pF @ 1MHz
Temperature Range - Operating	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	9-UDFN
Supplier Device Package	SGP3810N9
Base Product Number	RCLAMP3328
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	748575-RCLAMP3328P.TZT
Ultra Librarian 3D Model	Ultra Librarian RCLAMP3328P.TZT CAD Model

Alternative Products

Description

The RCLAMP3328P.TZT is a RailClamp™ TVS diode used for circuit protection in HDMI applications.

Type: Steering
Protection: Rail-to-Rail
Package: Tape & Reel
Standard Package Quantity: 5,000 pieces
Channels: 8 Unidirectional
Reverse Standoff Voltage: 3.3V
Clamping Voltage: 10.5V
Peak Pulse Power: 75W
Features: Power Line Protection
Capacitance: 0.4pF @ 1MHz
MSL Level: 1
HTSUS Code: 8541.10.0080
Base Product Number: RCLAMP3328
