Same model may have multiple batches, images only for reference.

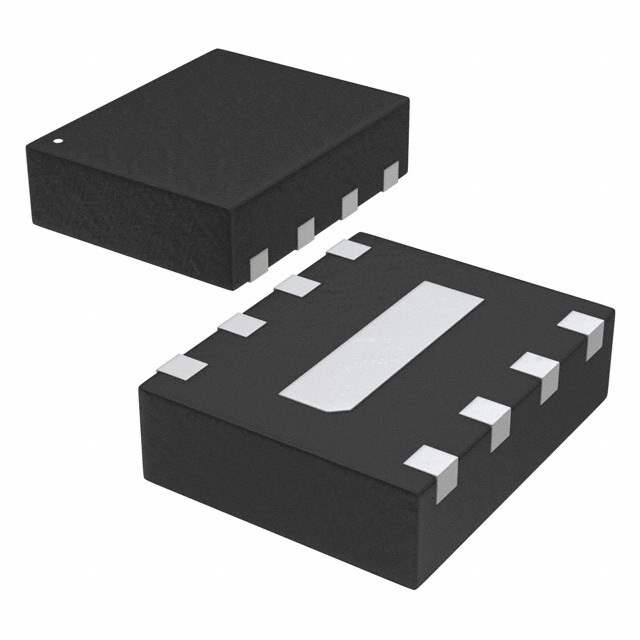

ECLAMP0504T.TCT Real Image
Same model may have multiple batches, images only for reference.

ECLAMP0504T.TCT

Part No ECLAMP0504T.TCT
Manufacturer Semtech Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC 1 KOHM/12PF ESD SMD
Datasheet
ECLAMP0504T.TCT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Semtech Corporation
Packaging Reel - TR
Status Active
Type High Pass
Filter Order 1st
Technology RC
Number of Channels 4
Resistance - Channel (Ohms) 1k
Current 2A
Values R = 1 kOhm, C = 12pF
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.083" L x 0.063" W (2.10mm x 1.60mm)
Height 0.017" (0.43mm)
Win Source Part Number 203513-ECLAMP0504T.TCT
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ECLAMP0504T.TCT CAD Model

Description

ECLAMP0504T.TCT - Comprehensive Surge Protection Solution

The ECLAMP0504T.TCT is an efficient electronic component designed for surge protection in sensitive circuitry. Featuring cutting-edge technology, this device is ideal for preventing damage from voltage spikes across various applications.

  • Mobile and smart devices
  • Consumer electronics
  • Automotive systems
  • Telecommunications infrastructure

Features and Benefits:

  • Excellent clamping voltage capability for superior protection
  • Compact form factor facilitating easy integration
  • High reliability, ensuring long service life
  • Low capacitance, preserving signal integrity

Whether used in consumer electronics or industrial systems, the ECLAMP0504T.TCT guarantees robust protection against voltage fluctuations, ensuring device longevity and performance consistency.
