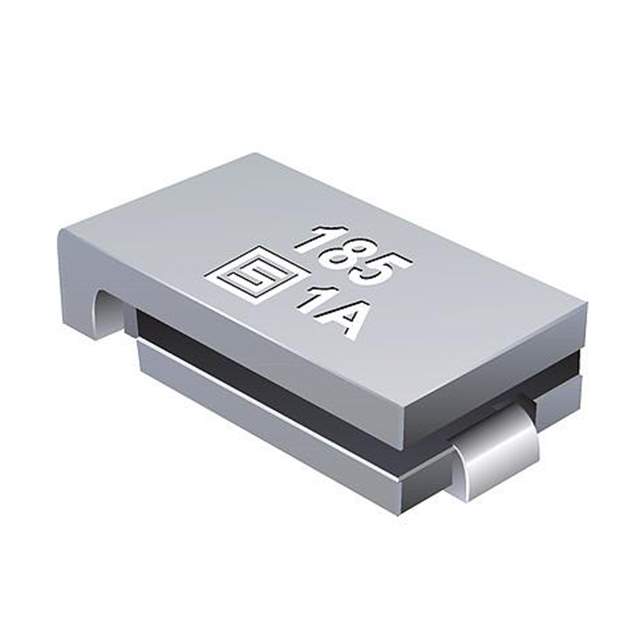

PFSM.075.2 Real Image
Same model may have multiple batches, images only for reference.

PFSM.075.2

Part No PFSM.075.2
Manufacturer Schurter Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 30V 750MA 2SMD / Polymeric PTC Resettable Fuse 30V 750 mA Ih Surface Mount 2-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr SCHURTER Inc.
Series PFSM
Package Tape & Reel
Type Polymeric
Voltage - Max 30V
Current - Max 80 A
Current - Hold (Ih) (Max) 750 mA
Current - Trip (It) 1.5 A
Time to Trip 300 ms
Resistance - Initial (Ri) (Min) 230 mOhms
Resistance - Post Trip (R1) (Max) 1 Ohms
Temperature Range - Operating -40°C ~ 85°C
Ratings AEC-Q200
Mounting SMD (SMT)
Package / Case 2-SMD
Dimension 0.289" L x 0.214" W (7.36mm x 5.44mm)
Thickness (Max) 0.125" (3.18mm)
Approval Agency cURus, TUV
Base Product Number PFSM.075
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Other Names PFSM.075.2-ND,486-1176-6,486-1176-1,486-1176-2,PFSM0752
Standard Package 2,000
Win Source Part Number 989519-PFSM.075.2
Ultra Librarian 3D Model Ultra Librarian PFSM.075.2 CAD Model

Description

The PFSM.075.2 is a Polymeric PTC Resettable Fuse that is designed to operate with AEC-Q200 ratings manufactured by SCHURTER Inc.

  • Mounting Type: SMD (SMT)
  • Package Type: 2-SMD
  • Voltage Supply (Max): 30V
  • Maximum Current: 80 A
  • Time to Trip: 300 ms
  • Operating Temperature Range: -40°C ~ 85°C
  • Dimensions: 0.289" L x 0.214" W (7.36mm x 5.44mm)
