Same model may have multiple batches, images only for reference.

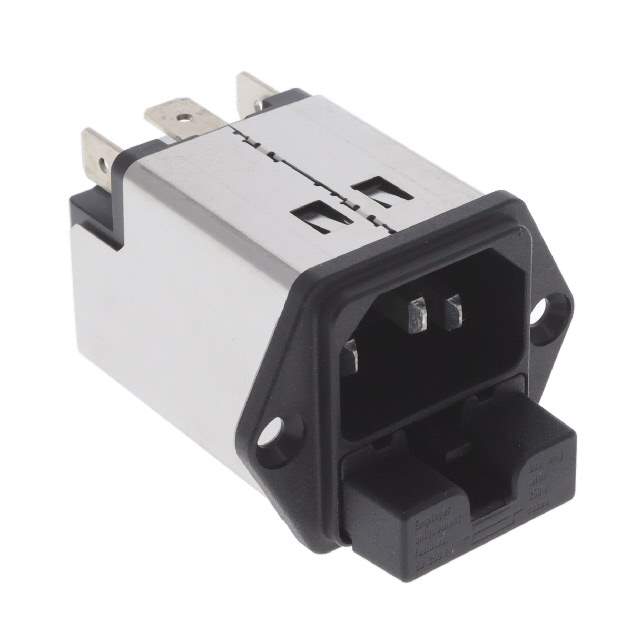

5220.0823.1 Real Image
Same model may have multiple batches, images only for reference.

5220.0823.1

Part No 5220.0823.1
Manufacturer Schurter Inc.
Catalog Power Entry Connectors - Inlets, Outlets, Modules
Description PWR ENT MOD RCPT IEC320-C14 PNL
Datasheet
5220.0823.1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Schurter Inc.
Packaging Bulk
Status Active
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current Rating 8A
Voltage Rating 250VAC
Nominal current IN - UL 8A
Voltage - UL 125VAC
Filter Type Filtered (EMI, RFI) - Commercial
Fuse Yes
Number of Positions 3
Mounting Panel Mount, Flange
Termination Quick Connect - 0.250" (6.3mm)
Switch Fuse Holder, Drawer Fuse Holder
Panel Cutout Dimensions Rectangular - 29.00mm x 32.00mm
Material Flammability Rating UL94 V-0
Ingress Protection IP40
Approvals cULus, ENEC
Win Source Part Number 1042254-5220.0823.1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 5220.0823.1 CAD Model

Description

The Schurter Inc. IEC 320-C14 Connector is a high-quality connector that is designed for use in various applications.

  • Manufacturer: Schurter Inc.
  • Product Name: IEC 320-C14 Connector
  • Packaging: Bulk
  • Number of Positions: Three
  • UL Voltage Rating: 125VAC
  • Voltage Rating: 250VAC
  • Current Rating: 8A
  • Ingress Protection: IP40
  • Material: UL94 V-0
  • Approvals: cULus and ENEC
  • Mounting Style: Panel Mount, Flange
  • Filtering: Filtered (EMI, RFI) - Commercial
  • Fuse: Yes
  • Panel Cutout Dimension: 29.00mm x 32.00mm
