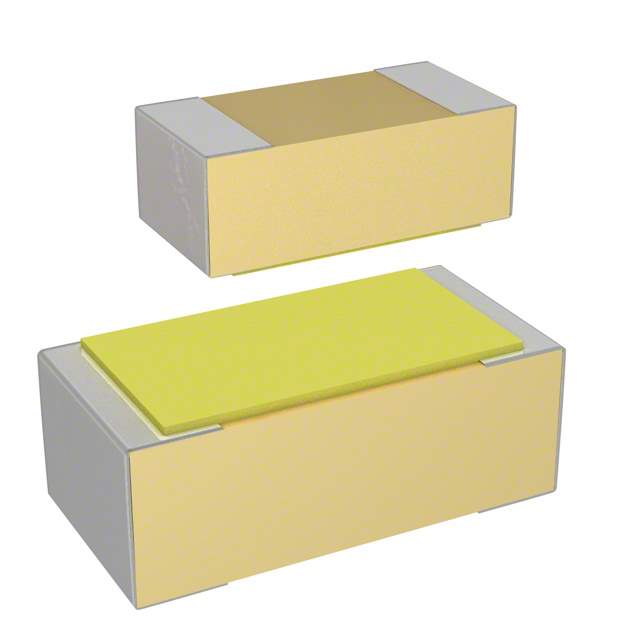

3412.0119.24 Real Image
Same model may have multiple batches, images only for reference.

3412.0119.24

Part No 3412.0119.24
Manufacturer Schurter Inc.
Catalog Fuses
Description FUSE BRD MNT 2A 36VAC 63VDC 0603 / 2 A 32 V AC 63 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr SCHURTER Inc.
Series USF 0603
Package Tape & Reel (TR)
Mounting SMD (SMT)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 2 A
Voltage Rating - AC 32 V
Voltage Rating - DC 63 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric)
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.25
Approval Agency cURus
Temperature Range - Operating -55°C ~ 90°C
Dimension 0.063" L x 0.031" W x 0.024" H (1.60mm x 0.80mm x 0.60mm)
DC Cold Resistance 0.0275 Ohms
Base Product Number 3412.0119
MSL Level Vendor Undefined
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 5,000
Win Source Part Number 972862-3412.0119.24
Ultra Librarian 3D Model Ultra Librarian 3412.0119.24 CAD Model

Description

The 972862-3412.0119.24 is a USF 0603 series fast-blow fuse designed and manufactured by SCHURTER Inc.

  • Category: Circuit Protection > Fuses
  • Standard Package: 5,000
  • Applications: Power Management, Motor Control, LED Lighting
  • Package Type: Surface Mount
  • Operating Temperature Range: -55°C to 90°C
  • Voltage Rating (AC): 32V AC
  • Voltage Rating (DC): 63V DC
  • Fuse Type: Fast-Blow
  • Manufacturer: SCHURTER Inc.
